Brand Name : HANJIU
Model Number : P80
Certification : CE
Place of Origin : CHINA
MOQ : 50 PCS
Price : Negotiable
Payment Terms : L/C, T/T, Western Union
Supply Ability : 300000 sets per year
Delivery Time : 10-15 work days
Packaging Details : Carton Packing
Model : 4P80
Oil Port : G1/2",G3/4",G3/8"
Spool : 1, 2, 3, 4, 5, 6, ...
Flow : 40lt, 50lt, 60lt, 80lt, 100lt, 120lt, 140lt, ...
Pressure : 31.5MPa

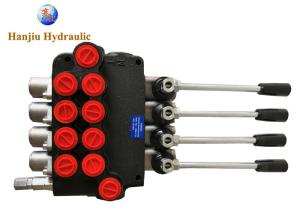

Professional 4 Way Hydraulic Control Valve / Monoblock Valve 80LPM with High Quality Quick Delivery

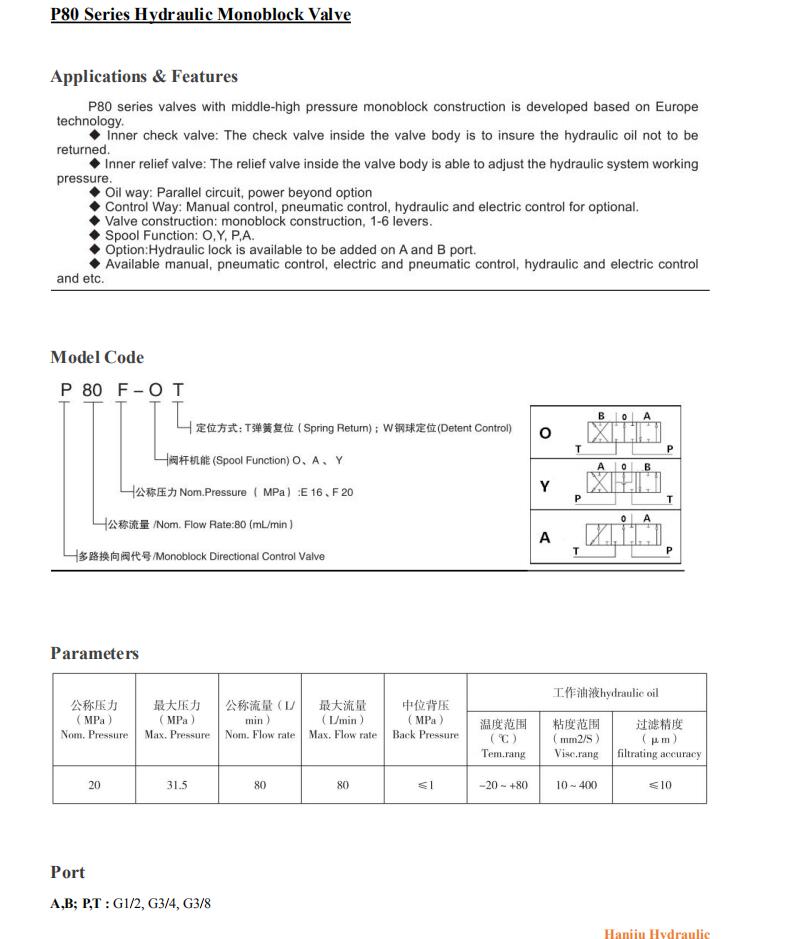

P80 Monoblock Directional Control Valve
PRODUCT INTRODUCTION P80 series | ||
Product Name | Monoblock Directional Control Valve | ![]() |
Product No | 4P80 | |
Oil Port | G1/2" | |
Spool Range | 1-6 |
The hydraulic distributor Р80 is used for switching on/off and directing the working fluid between head flow generators (hydraulic pumps), head flow consumers (hydraulic cylinders, motors, etc.), and the tank. It is manufactured with up to 6 plungers
Product Description:
1. Nominal Flow:80L/min Max 80L/Min, Max Working Pressure 315Bar
2. Operation Methods: Pneumatic Control, Electrical +Pneumatic control, Electric+ hydraulic Control, Remote Control
3. Positioning Return Modes: Ball locking; Spring Return
4. Spool Functions: O A Y etc
5. Thread: G1/2; G3/4;M18*1.5;7/8-14UNF;3/4-16UNF
6. Oil Way: Parallel Circuit, Power Beyond Option
7. Application: Agricultural tractor,Sanitation Machines, etc
![]() |

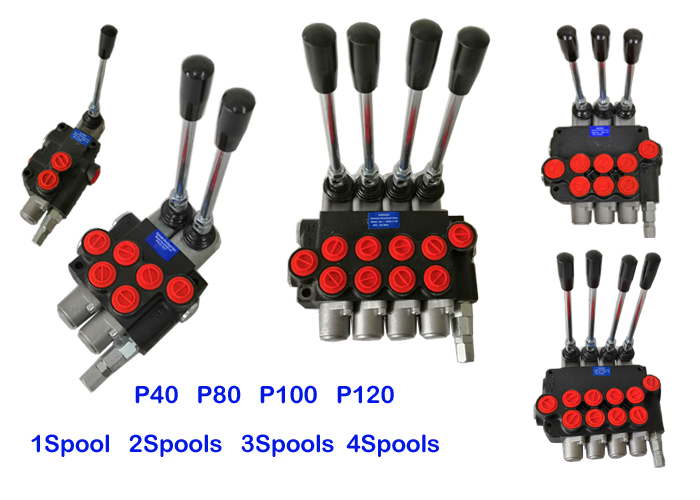

Professional 4 Way Hydraulic Control Valve / Monoblock Valve 80LPM for Sanitation Machines Images |
