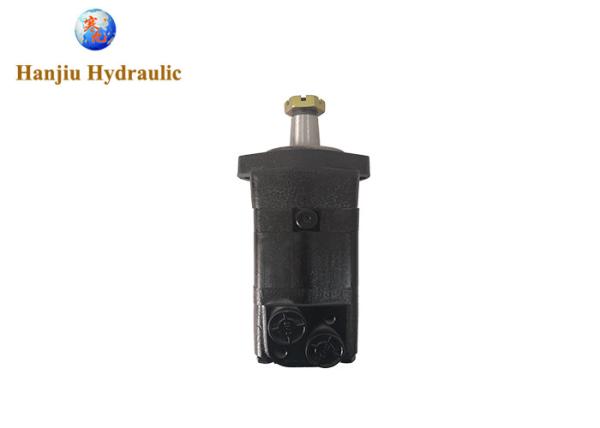

OMS 315 Hydraulic Motor, BMSY 315 Hydraulic Motor Replacement
Quick details:
1, BMSY is an upgraded hydraulic motor of BMS series
2, BMSY is an alternative hydraulic motor of OMS, Eaton 2k, M+S MS
3, BMSY is now the most suitable replacement motor for , Eaton, M+S with super performance, however very much more favarable price than originals or OEM parts you may found on original machines
Orbital Hydraulic Motor line: MM, MP, MR, MS, MT e MV, J, S/T, 2K, 4K, 6K, 10K, TJ, TE, TG, TF.
PDF data sheets HYDRAULIC MOTOR please contact us to ask.
HANJIU is the supplier of Orbital Motors. We offer various solutions, applications and types of motors adapted to your requirements.
The displacements are variable between 8 cc/rev to 985 cc/rev. The speed range varies from 1380 rpm for the smallest motors to 300 rpm for the bigger types. The maximum operating torques are variable between 9,3daNm and 182daNm. Our motors are interchangeables with motors supplied by best known manufacturers. We offer the best price / performance ratios on the market and have short delivery supplies.
BMSY indroduction:
BMSY new series motor adapt the advanced Geroler gear set designed with disc distribution flow and high pressure.The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.

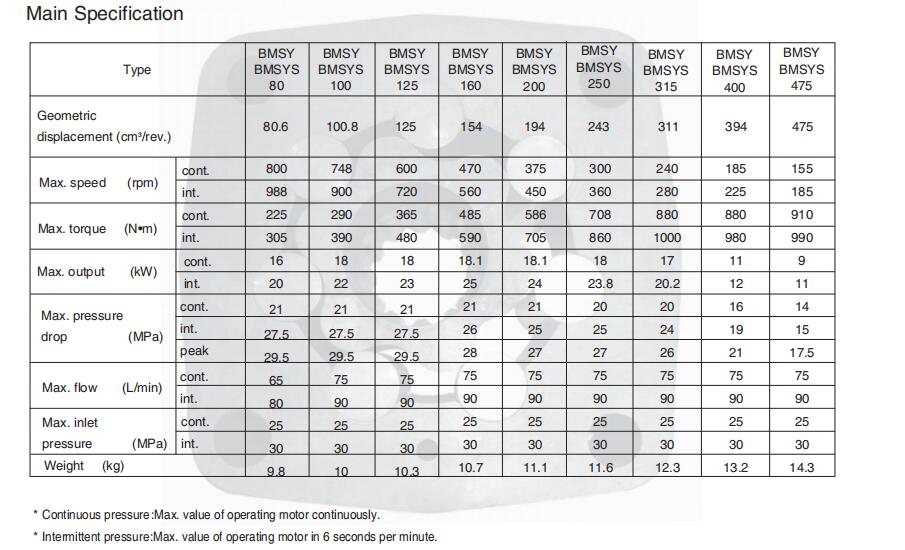

| Main Specifications: |
| Type | BMSY
BMSYE
80 | BMSY
BMSYE
100 | BMSY
BMSYE
125 | BMSY
BMSYE
160 | BMSY
BMSYE
200 | BMSY
BMSYE
250 | BMSY
BMSYE
315 | BMSY
BMSYE
375 | Geometric displacement
(cm3 /rev.) | 80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | | Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 185 | | int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 225 | | Max. torque (N·m) | cont. | 225 | 290 | 365 | 485 | 586 | 708 | 880 | 880 | | int. | 305 | 390 | 480 | 590 | 705 | 860 | 1000 | 980 | | | | | | | | | | | | Max. output (kW) | cont. | 16 | 18 | 18 | 18.1 | 18.1 | 18 | 17 | 11 | | int. | 20 | 22 | 23 | 25 | 24 | 23.8 | 20.2 | 12 | | Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 | | int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 | | peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 | | Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | | int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | | Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | | int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | | Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | * Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute. |
Please do not hesitate to contact us if you also have request for below parts:
