KZK-12-1790990A Hydromotor Spare Parts KZS-10K KZS-1218 For Combine Harvesters Hydraulic Systerms

Name: KZK121790990A Hydromotor Spare Parts KZS10K KZS1218 For Combine Harvesters Hydraulic Systerms
Brand: HANJIU
Price: 1 USD

Quality KZK-12-1790990A Hydromotor Spare Parts KZS-10K KZS-1218 For Combine Harvesters Hydraulic Systerms wholesale

Brand Name : HANJIU

Model Number : BMR 315

Certification : CE

Place of Origin : China

MOQ : 20 Pieces

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Payple

Supply Ability : 300000 pieces per year

Delivery Time : 25-30 work days

Packaging Details : 1 pc/ inner carton, 3 pcs/ outer carton, 27x40x14cm, transport with wooden pallet, 1500 pcs/ 20GP, 3000 pcs/ 40GP

Type : Hydraulic Oil Motor

Brand : HANJIU

Model No. : BMR

Displacement : 315CC

Speed : 190 RPM - 240 RPM

Flow : 60 lpm - 75 lpm

pressure : 9mpa-13mpa

output : 6.0-9.0kw

Contact Now

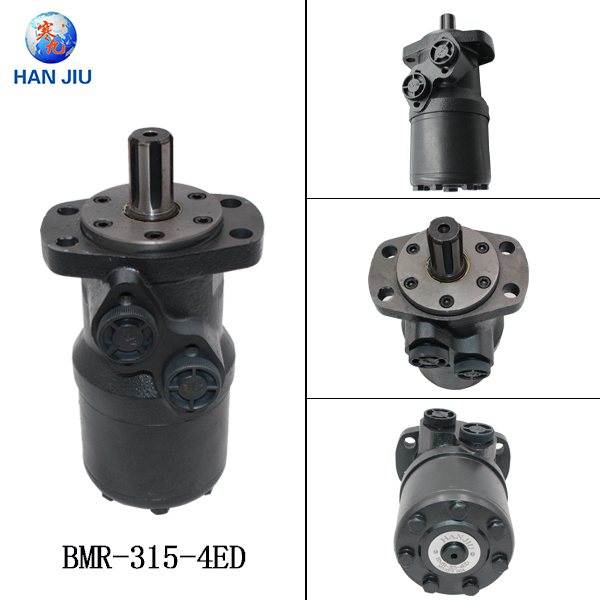

KZK-12-1790990A hydromotor spare parts KZS-10K, KZS-1218 for combine harvesters

The KZK-12-1790990A inclined chamber reverse hydraulic motor is used in the hydraulic system of the KZS-1218 PALESSE GS12 combine and the KZS-10K PALESSE GS10 combine.

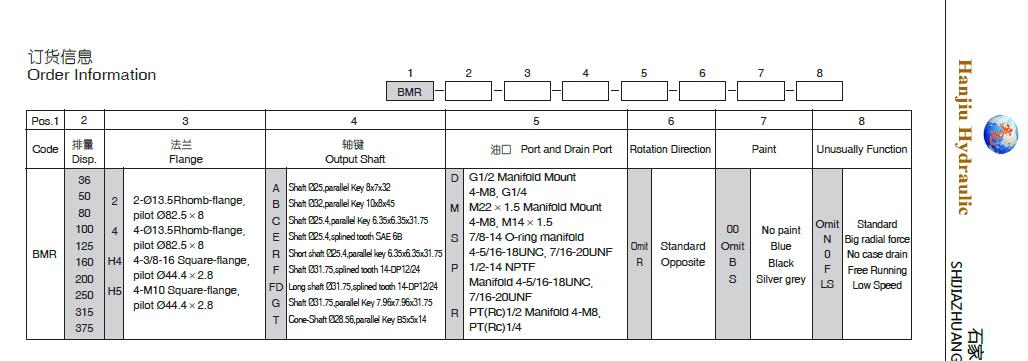

Specifications:

BMR = OMR 151-
displacement = 315cc
2= 2-Ø13.5Rhomb-flange, pilot Ø82.5×8
E = Shaft Ø25.4,splined tooth SAE 6B
D = G1/2 Manifold Mount, 4-M8, G1/4
B = Black

Characteristic Features:

Shijiazhuang hanjiu technology is strong at motor produce, type , Eaton, Char-lynn, Parker, White, Brevini, TRW, M+S can be provided,

good quality,affordable price, fast delivery time and best after sales service.

Specifications:

Main Specifications:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1085	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1220	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	360	360	390	390	365
	int.	83	126	220	280	340	430	440	490	535	495
	peak	105	165	270	320	370	460	560	640	650	680
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	10	7	6	5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	9.5	9	8
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	16.5	13	11	9	7
	int.	16.5	17.5	20	20	20	20	17.5	15	13	10
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	20	17.5	15
Max. flow (L/min)	cont.	40	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	45	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

Technical data for BMR with 31.75 and 32 shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1250	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1520	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	380	450	540	550	580
	int.	83	126	220	280	340	430	500	610	690	690
	peak	105	165	270	320	370	460	560	710	840	830
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	11	10	9	7.5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	12	10	9
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	17.5	17.5	17.5	13.5	11.5
	int.	16.5	17.5	20	20	20	20	20	20	17.5	15
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	21	17.5
Max. flow (L/min)	cont.	45	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	55	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.

Applications:

Machines for agriculture and forestry
Mining machinery
Construction plant equipment and access platforms
Grass cutting machinery
Special vehicles
Ship's equipment and winches on fishing vessels
Machine tools
Woodworking and sawmill machinery
Plastic and rubber machinery etc.
