Brand Name : HANJIU CHINA
Model Number : BMV-400-4AD
Certification : CE
Place of Origin : CHINA
MOQ : 1 Unit
Price : Ask the seller
Payment Terms : L/C, T/T, Western Union
Supply Ability : 100000 sets per year
Delivery Time : 19 work days
Packaging Details : 1pc/carton/51x25x25cm.
Product : Orbital Motor
Type : Oil Motor
Feature : Danfoss equivalent
OEM : 151B3101
Displacement : 400 ml/r
Flange : 4 hole
Ports : G1 - G1/4
Shaft : Cylindrical 50mm
Code: 151B3101
Aftermarket code: BMV-400
Basic Motor: OMV
Displacement: 400
Mounting Flange: Standard
Shaft Style: Cylindrical
Shaft Size: 50 mm ; M12 x 1,75 tap
Shaft Key: A14 x 9 x 70 mm (DIN 6885)
Port Size: Side port
Port Dimension: G 1
Drain Port Style: Standard
Drain port Dimension: G 1/4
Danfoss Number | Disp. | Shaft | Keyway | Port | Drain |
151B3101 | 400 | 50mm | A14X9X70 | G1 | G1/4 |
Unit weight | 32.6kg |
Packing size | 44 x 24 x 22cm |
Maximum Continuous Output Speed | 500 rpm |
Maximum Intermittent Output Speed | 600 rpm |
Maximum Continuous Output Torque | 1180Nm |
Maximum Intermittent Output Torque | 1410Nm |
Danfoss similar type motors are available we belows:
Most complete range of Danfoss OMM, OMP, OMR, OMH, OMS, OMT, OMV series aftermarket motors
Applications: Mowing, snow removal, sprayer, trencher and wood products
sometimes Item is in stock, sometimes not, when there is no a stock it needs 25 days to produce new
We specialized in Eaton, Danfoss, Parker, Brevini, M+S motors
Contact us to get more information
Send your request list to get your special offer
![]() |

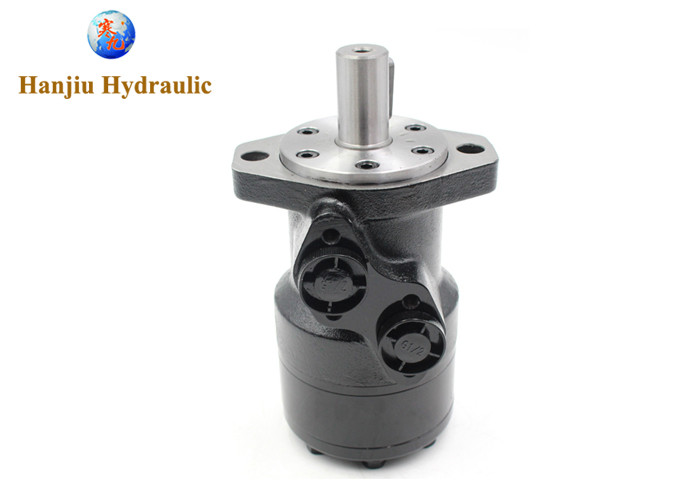

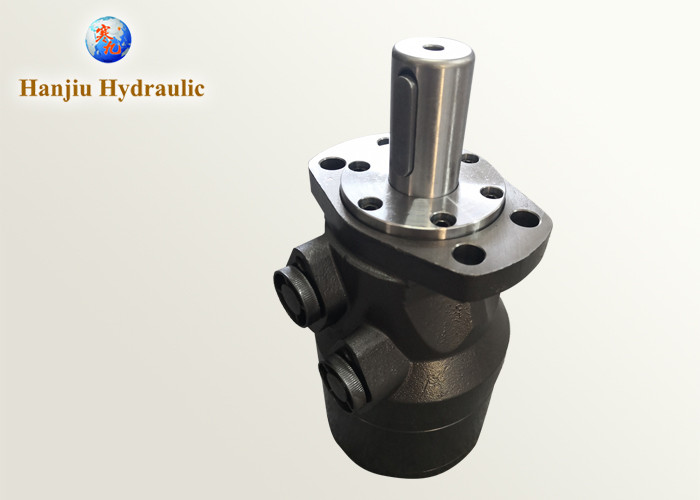

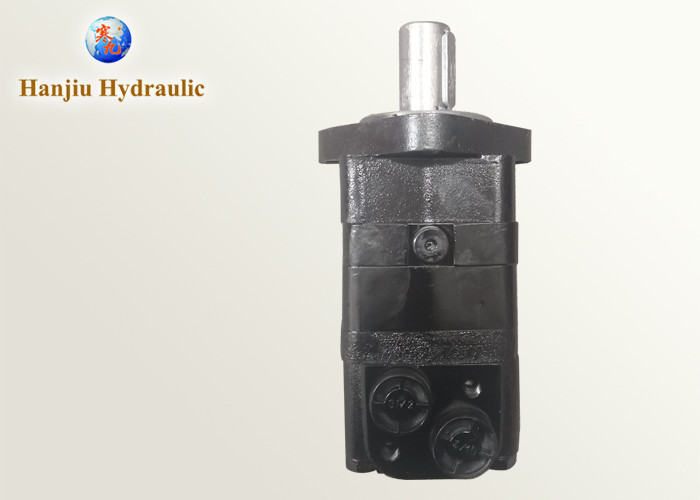

151B3101 OMV 400 Low Speed High Torque Motor Geometric Displacement 400.9 Cm3 Images |
