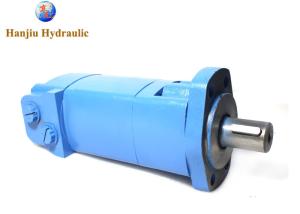

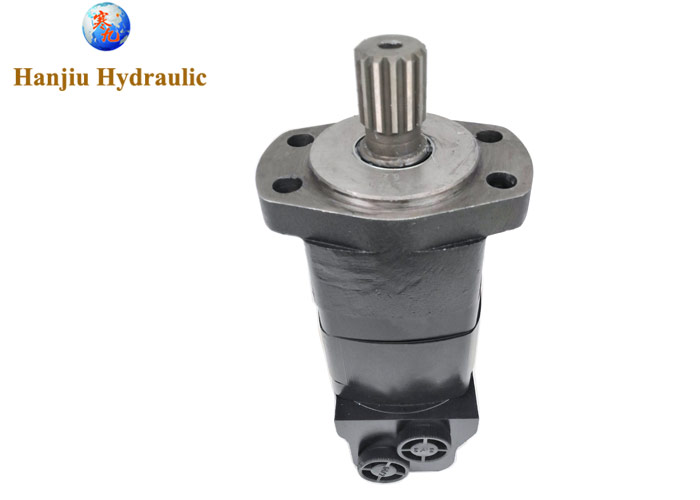

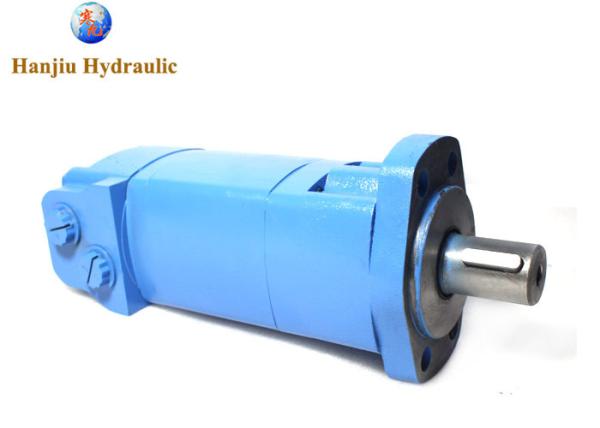

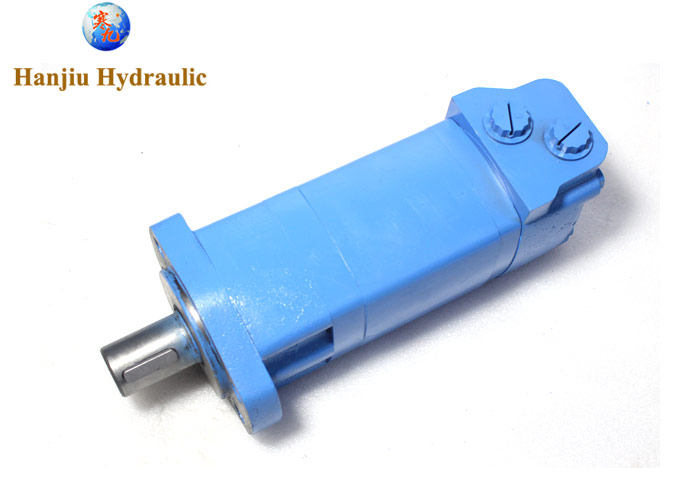

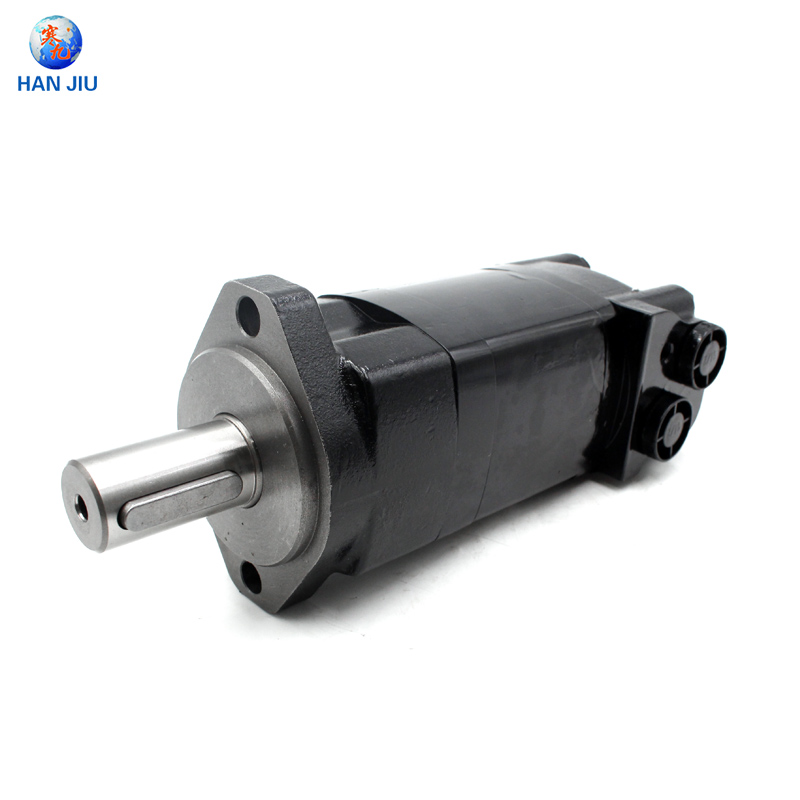

Eaton Gerotor Hydraulic Motor Industrial Disc Valve Motor 29.8 Cu In/Rev, 4 Bolt Magneto Mounting Flange,31.75mm Shaft

Shijiazhuang Hanjiu Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Eaton Gerotor Hydraulic Motor Industrial Disc Valve Motor 29.8 Cu In/Rev, 4 Bolt Magneto Mounting Flange,31.75mm Shaft

Brand Name : HANJIU

Model Number : BMK2 MOTOR

Certification : CE

Place of Origin : CHINA

MOQ : 10pieces

Price : Negotiable

Payment Terms : T/T, D/P, D/A, L/C

Supply Ability : 300000PCS PER YEAR

Delivery Time : 25-30DAYS

Packaging Details : 2PCS IN ONE CARTON,800PCS IN 20'FCL

Application : Harvesting equipment

displacement : 500cc

Max.speed(rpm) : cont.153rpm/int.230rpm

Max.torque(N.m) : cont.845N.m/int.930N.m

Max.pressure drop : cont.12Mpa/int.14Mpa

Oil temperature : normal-35℃-80℃

Viscosity : 42-74mm2/s

Features : match /M+S/Eaton/Char_lynn

Contact Now

2000 Series Geroler Motor, 29.8 cu in/rev,

4 Bolt Magneto Mounting Flange,31.75mm Shaft

7/8-14 St.Thd. O-Ring

Brand HANJIU
Displacement 29.8 Cir
Product Type Simple product
Features Blue Paint
Mount 4 Bolt Magneto
Ports 7/8-14 St.Thd. O-Ring
Supplier Part Number 104-3917-006
Product Weight 27.00 lbs


Main specification

TYPE

BMK2
125CC

BMK2

160CC

BMK2
200CC

BMK2
250CC

BMK2
315CC

BMK2
400CC

BMK2

475CC

Displacement(ml/r) 129.8 156.8 193.4 242.5 304.3 390.8 485

Max.Pressure.Drop(Mpa)
cont. 21 20.5 20.5 20.5 21 15.5 12
int. 31 26 26 26 24 17 14
peak. 31 31 31 31 31 20.5 17
Max.Torque(N.m) cont. 385 455 540 660 765 775 845
int. 560 570 665 820 885 925 930
Speed.Range(r/min) cont. 576 477 385 308 246 191 153
int. 720 713 577 462 365 287 230
Max.Flow(cont.)(L/min) cont. 75 75 75 75 75 75 75
int. 95 115 115 115 115 115 115
Weight(kg) 10 10.2 10.5 11 11.5 12 12.4



Eaton Gerotor Hydraulic Motor Industrial Disc Valve Motor 29.8 Cu In/Rev, 4 Bolt Magneto Mounting Flange,31.75mm Shaft

Eaton Gerotor Hydraulic Motor Industrial Disc Valve Motor 29.8 Cu In/Rev, 4 Bolt Magneto Mounting Flange,31.75mm Shaft

Eaton Gerotor Hydraulic Motor Industrial Disc Valve Motor 29.8 Cu In/Rev, 4 Bolt Magneto Mounting Flange,31.75mm Shaft

Benefits
• Lowest pressure drop motor in the industry
• Widest range of options
• The most experienced manufacturer of LSHT motors
Applications
• Swing motor
• Brush Cutters & mowers
• Harvesting equipment
• Directional boring
• Turf equipment
• Skid Steer loaders
• Fairway mowers
• Harvesters
• Mowing
• Snow removal
• Sprayers
• Trencher
• Wood products
• Grinders and mixers
• Forestry equipment
• Irrigation reels
When the job is tough—perhaps the harvest is long, or the brush to be cleared is thicker than usual
—nobody has time for a faulty, unreliable motor.
HANJIU answers the call with medium pressure disc valve motors that provide higher flows
and pressures than spool valve motors. Whether the system requires standard mount,
wheel mount ,Hanjiu medium pressure motors deliver unrivaled performance for a variety of applications.

Eaton Gerotor Hydraulic Motor Industrial Disc Valve Motor 29.8 Cu In/Rev, 4 Bolt Magneto Mounting Flange,31.75mm Shaft

We are offering an exclusive range of Gerotor Motor to valued clients. Our engineers develop this range using optimum quality material and modern equipment. Furthermore, our products are highly appreciated for long-lasting nature. Quality tested on various constraints, these products promise international standards. Additionally, we are capable in making these products available in bulk quantity and in time.
