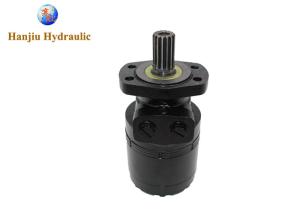

625 Cc 6 Bolt 14T Orbit Hydraulic Motor Parker TG0625EN440XXXX Alternative

Brand Name : HANJIU

Model Number : BMER

Certification : CE

Place of Origin : China

MOQ : 1 Pieces

Price : Contact seller to ask

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 10000 pieces per year

Delivery Time : 35 work days

Packaging Details : Box, Pallet

Item : Orbit Motor

Type : High Pressure, without drain

Direction : Unti-clockwise

Speed : 100/120RPM

Torque : 1050/1180/1370NM

Mounting : 4 Bolt, 6 Bolt

Port : Universal

Shaft : Long 1 1/4'' Keyed 14T

Contact Now


625 cc 6 bolt 14T Hydraulic Orbit Motor, Parker TG0625EN440XXXX Alternative

Hanjiu BMER series is an alternative to Parker TG series

This motor with same mounting and performance as Parker TG0625EN440XXXX

No matter what TG series motor model you need, what size, what installation method, I can provide
And has a price performance leading position

Specifications
Series: BMER/TG
Shaft: 1 1/4" Splined
Rotation: Unti-clockwise
Displacement (cm3/rev): 0625
Mounting: Standard (Wheel available)
Geometric Displacement: 623 cm3/rev (38.0 in3/rev)
Max. Differential Pressure (continuous / intermittent): 121 bar (1750 PSID) / 155 bar (2250 PSID)
Maximum Supply Pressure: 300 bar (4350 PSIG)
Maximum Torque - Continuous / Intermittent: 986 Nm (8727 lb-in) / 1291 Nm (11424 lb-in)
Maximum Performance: 20 KW (27 HP)
Minimum Starting Torque - Continuous / Intermittent: 895 Nm (7924 lb-in) / 1165 Nm (10312 lb-in)
Porting Code: N
Shaft Code: 44
Rotation Code: 0

BMER is a Medium Duty Motor same as Parker TG Series
With increased power and durability, the BMER ( TG Series ) low speed high torque (LSHT) hydraulic motor is available in 4 bolt, 6 bolt flange or wheel mounts. Torques to 12,600 lb-in and displacements to 58.5 cu in. Shaft sizes to 1.375-inch nominal.


Main Specificaion

Type BMER BMER BMER BMER BMER BMER BMER BMER BMER BMER BMER
125 160 200 230 250 300 350 375 475 540 750
Geometric displacement (cm3/rev.) 118 156 196 228 257 296 345 371 462 540 745
Max. speed (rpm) cont. 360 375 330 290 290 250 220 200 160 140 100
int. 490 470 425 365 350 315 270 240 195 170 120
Max. torque (N•m) cont. 325 450 530 625 700 810 905 990 1085 980 1050
int. 380 525 600 710 790 930 1035 1140 1180 1240 1180
peak 450 590 750 870 980 1120 1285 1360 1260 1380 1370
Max. output (kW) cont. 12.0 15.0 15.5 16.0 17.5 18.0 17.5 16.5 14.5 11.5 8.0
int. 14.0 17.5 18.0 19.0 20.0 21.0 20.0 19.0 16.5 15.0 10.0
Max. pressure drop (MPa) cont. 20.5 20.5 20.5 20.5 20.5 20.5 20.5 20.5 17.5 14 10.5
int. 24 24 24 24 24 24 24 24 19 17.5 12
peak 27.6 27.6 27.6 27.6 27.6 27.6 27.6 27.6 20.5 20.5 14
Max. flow (L/min) cont. 45 60 70 70 75 80 80 75 75 75 75
int. 60 75 85 85 90 95 95 90 90 90 90

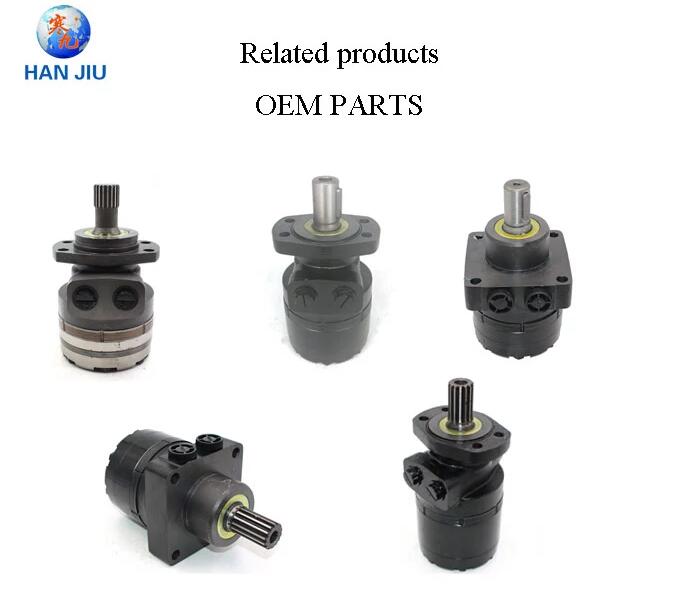

Related Products:
