Brand Name : HANJIU
Model Number : 6000 series
Certification : CE
Place of Origin : CHINA
MOQ : 1 Sets
Price : Start from 200 usd
Payment Terms : L/C, T/T, Western Union, Western Union
Supply Ability : 300000 sets per year
Delivery Time : 15 - 45 work days
Packaging Details : Carton, Box, Pallets
Item : Motor Geroler
Model : 6000 series
Direction of rotation : Reversible
Fastening : 4 Bolts.
Maximum system temperature : 82ºC
Minimum oil viscosity : 70 SUS

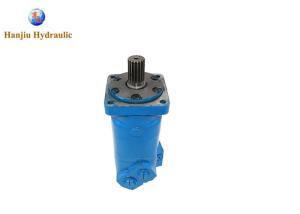

Char-Lynn disc Geroler motors 6000 series like for industrial machinery
6000 series motor
These motors are actuators widely used in industrial production lines in multiple areas and also in hydraulic applications and industrial machinery.
Geroler gear set designed with disc distribition flow and high pressure.
Canbe supplied the individual variant in operating multifunction in accordance with requirement of applications.
Description:
Reversible direction of rotation.
High radial loads on the axle, allow direct mounting of wheels or other elements.
Maximum system temperature 82ºC.
Minimum oil viscosity: 70 SUS.
Use 10 micron oil filters.
6000 series Motor Geroler
Displ. cm3/r | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 |
Max Speed rpm | 865 | 830 | 690 | 570 | 455 | 360 | 280 | 230 |
Flow l/min | 150/170 | 150/205 | 150/225 | 150/225 | 150/225 | 150/225 | 150/225 | 150/225 |
Torque Nm | 565/840 | 710/1080 | 920/1325 | 1160/1625 | 1445/1880 | 1480/1890 | 1580/1880 | 1675/1860 |
Discrption | ||
Series 2.000 | ||
Model | Displacement | Speed |
Max. cont. | ||
104-1002 | 6,2 | 742 |
104-1023 | 6,2 | 742 |
104-1003 | 8,0 | 579 |
104-1024 | 8 | 576 |
104-1004 | 9,6 | 477 |
104-1025 | 9,6 | 477 |
104-1027 | 14,9 | 308 |
104-1026 | 11,9 | 385 |
104-1006 | 14,9 | 308 |
104-1027 | 14,9 | 308 |
104-1028 | 18,7 | 246 |
104-1007 | 305 | 246 |
104-1229 | 395 | 191 |
Series 10.000 | ||
Model | Displacement | Speed |
Max. cont. | ||
119-1028 | 345 | 501 |
119-1029 | 480 | 354 |
119-1030 | 665 | 254 |
121-1013 | 665 | 254 |
119-1031 | 940 | 179 |
120-1027 | 665 | 254 |
120-1015 | 665 | 254 |
Series H | ||
Model | Displacement | Speed |
Max. cont. | ||
101-1700 | 36 | 1021 |
101-1025 | 46 | 969 |
101-1705 | 59 | 953 |
101-1026 | 74 | 760 |
101-1035 | 97 | 585 |
101-1706 | 120 | 469 |
101-1028 | 159 | 353 |
101-1029 | 185 | 304 |
101-1030 | 231 | 243 |
101-1039 | 293 | 192 |
101-1031 | 293 | 192 |
101-1040 | 370 | 152 |
101-1032 | 370 | 152 |
A compact, highly efficient hydraulic motor is a key component of a hydraulic drive system. Hanjiu offers a wide variety of motors with unique performance characteristics which are designed for superior, efficient system performance. Contact us today to discuss your questions or application needs with our team.
![]() |
Char Lynn Disc Geroler Motors 6000 Series Like For Industrial Machinery Images |
