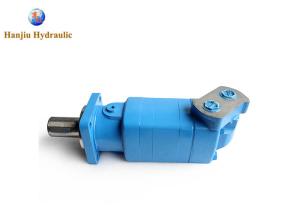

119-1028 Geroler Motor Char Lynn 1000 Series Standard 4 Bolt 57.15 Straight Shaft SAE O Ring Port

  • 1
  • 2
  • 3

Brand Name : HANJIU

Model Number : 10,000 series

Certification : CE

Place of Origin : CHINA

MOQ : 1 Sets

Price : Start from 900 usd

Payment Terms : L/C, T/T, Western Union, Western Union

Supply Ability : 300000 sets per year

Delivery Time : 15 - 45 work days

Packaging Details : Carton, Box, Pallets

Item : Motor Geroler

Model : 10000 series

Fastening : STANDARD

Port : Staggered ports

Shaft : Straight

Pilot : 127.0

Contact Now

119-1028, Char-Lynn 10,00 Series Standard 4 bolt 57.15 Straight Shaft, SAE O-Ring Port​

Description
This is the biggest disc valve motor of our line with up to 45 GPM and 24,000 in-lb of torque in continuous mode, this motor is powerful and yet provides good efficiency

Specifications
Geroler Element 4 Displacements
Flow l/min [GPM] 170 [45] Continuous**
265 [70] Intermittent*
Speed RPM 501 Cont.**
784 Inter.*
Pressure bar [PSI] 200 [3000] Cont.**
270 [4000] Inter.*
Torque Nm [lb-in] 2700 [23910] Cont.**
3440 [30460] Inter.*

Features
• High torque and flow
• Low pressure loss even in higher flows

Benefits
• High power density for demanding mobile and industrial applications
• Many options to draw from


Applications
• Boring
• Industrial
• Metal Forming
• Port Equipment
• Saw Mill

Series 10.000
Model Displacement Speed
Max. cont.
119-1028 345 501
119-1029 480 354
119-1030 665 254
121-1013 665 254
119-1031 940 179
120-1027 665 254
120-1015 665 254


A compact, highly efficient hydraulic motor is a key component of a hydraulic drive system. Hanjiu offers a wide variety of motors with unique performance characteristics which are designed for superior, efficient system performance. Contact us today to discuss your questions or application needs with our team.

119-1028 Geroler Motor Char Lynn 1000 Series Standard 4 Bolt 57.15 Straight Shaft SAE O Ring Port
