505260A3123AAAAA Drive RE Series Interchange White Hydraulic Motor

  • 1
  • 2
  • 3

Brand Name : HANJIU

Model Number : 505260A3123AAAAA

Certification : CE

Place of Origin : China

MOQ : 100 Pieces

Price : 150 USD

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 10000 pieces per year

Delivery Time : 55 work days

Packaging Details : Box, Pallet

Item : Orbit Hydraulic Motor

OEM # : 505260A3123AAAAA

Manufacturer : Hanjiu

Displacement : 260ml/r

Mounting flange : 4-hole wheel flange

Shaft type : Spline

Contact Now

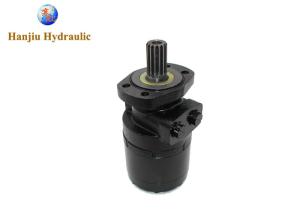

505260A3123AAAAA White Drive RE Series Interchange Hydraulic Motor

This is a White RE Series Interchange Hydraulic Motor, not made by White.

Quick review:

Code Number: 505260A3123AAAAA
Rotation
Standard Rotation
Displacement
261 cm3/rev
[15.9 in3/rev]

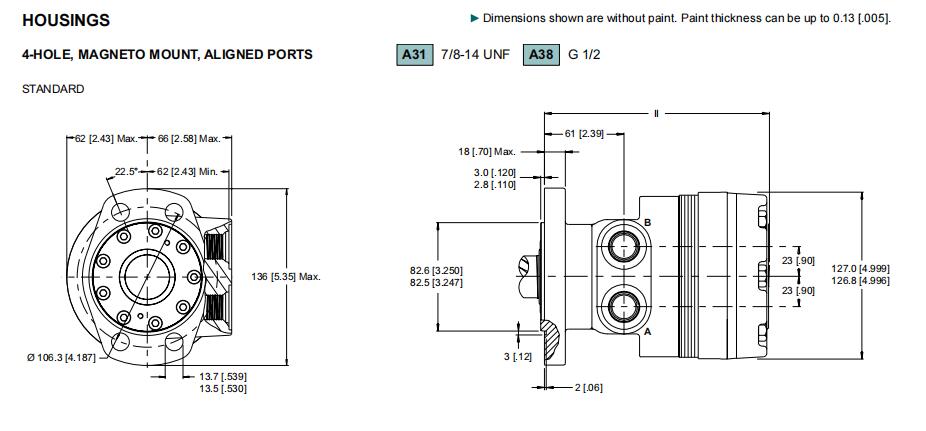

Mount & Port
4-Hole, Magneto Mount, Aligned Ports, 7/8-14 UNF

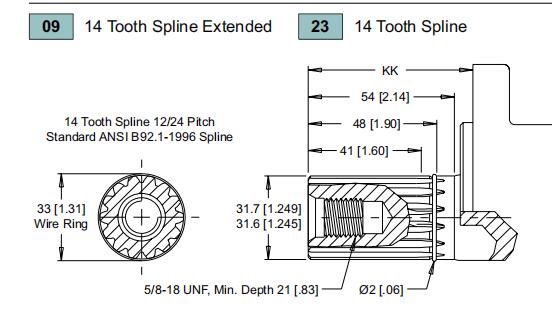

Shaft
14 Tooth Spline
Paint Black

Equivalent to White Drive Products 505260A3123AAAAA hydraulic motor. Low speed, high torque. 15.68 cubic inch displacement. 6 bolt magneto flange mount. 1-1/4" 14 soline shaft. 7/8"-14 SAE ports. 290 RPM maximum speed. 6195 inch lbs. of torque. 19.81 GPM maximum flow rate. 2973 PSI maximum pressure differential. Counter-clockwise rotation.

This motors offer the perfect compromise between price and performance by producing power at a reasonable cost. Although these motors perform well in a wide range of applications they are especially suited for low flow high pressure applications. During startup pressure causes the balance plate to flex toward the rotor vastly improving volumetric efficiency. As the motor reaches operating pressure the balance plate relaxes allowing the rotor to turn freely which translates into higher mechanical efficiencies. Torque is transmitted to the output shaft through the most durable drive link in its class.

505260A3123AAAAA Drive RE Series Interchange White Hydraulic Motor

505260A3123AAAAA Drive RE Series Interchange White Hydraulic Motor
