Double Ended Rolfo Car Transporters 200cc Hydraulic Motor OEM Ref 129026

Name: Double Ended Rolfo Car Transporters 200cc Hydraulic Motor OEM Ref 129026
Brand: HANJIU
Price: 115 USD

Quality Double Ended Rolfo Car Transporters 200cc Hydraulic Motor OEM Ref 129026 wholesale

Brand Name : HANJIU

Model Number : BMRYB-200-N2A6A6G

Certification : CE

Place of Origin : China

MOQ : 100 Pieces

Price : 115 USD

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 10000 pieces per year

Delivery Time : 55 work days

Packaging Details : Box, Pallet

Item : Hydraulic Motor

OEM # : BMRYB-200-N2A6A6G

Manufacturer : Hanjiu

Displacement : 200ml/r

Mounting flange : 2-hole wheel flange

Shaft type : Straight Double Ended

Contact Now

Double Ended Hydraulic Motor Suitable for Rolfo Car Transporters OEM Ref 129026

This is an Rolfo Car Transporters similar motor, made by Hanjiu.

Technical information

BMR DOUBLE ENDED MEDIUM-SPEED MOTOR
- Displacement: 200cc
- Flange: 2-hole, SAE-A, distance 106mm, Ø centring 82.50mm
- Shaft: Ø25mm, cylindrical
- Ports: 1/2" BSP (inlet and outlet) 1/4" BSP (drain)
- speed 378 rpm
- Rolfo Car Transporters OEM Ref 129026

FEATURES OF PRODUCT
Rotation: right and left

Displacement

[cm3/rev]

Max. speed

[RPM]

Max. Torgue

[daNm]

Max. Torgue "A" shaft

[daNm]

Max. Torgue "B" shaft

[daNm]

Max. Output

[kW]

Max. Pressure Drop

[bar]

Max. Oil Flow

[Ipm]

cont.

int*

cont.

int*

cont.

int*

cont.

int*

cont.

int*

cont.

int*

cont.

int*

199,8

300

375

110

140

APPLICATIONS:

**Conveyors;
**Feeding mechanism of robots and manipulators;
**Metal working machines;
**Textile machines;
**Food industries;
**Agriculture machines;
**Mining machinery;
**Trailer

Double Ended Rolfo Car Transporters 200cc Hydraulic Motor OEM Ref 129026

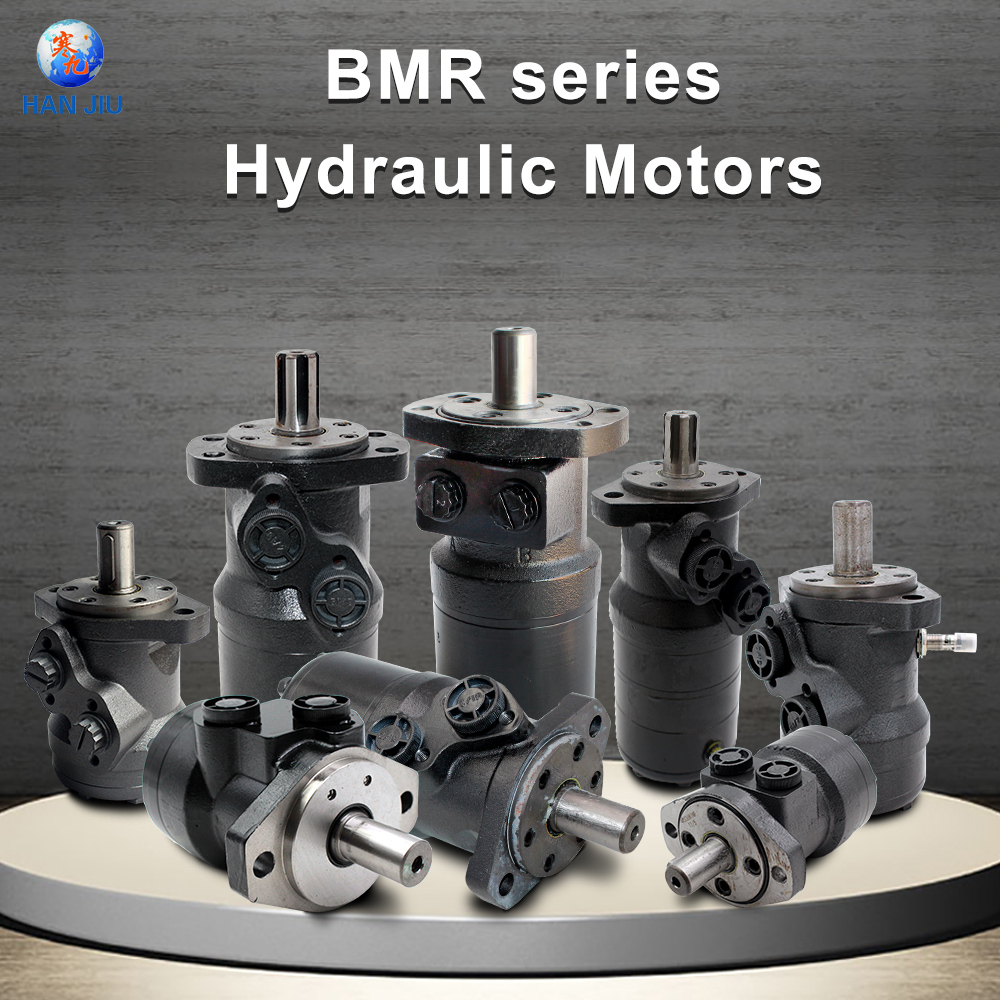

More BMR series motors available:

A variety of mounting flange types, a variety of output shaft types, and a variety of displacements can meet all your installation and use requirements. For BMM, BMP, BMR, BMH, BMS, BMSY, BMT, BMV, BMK2, BMK4, BMK6, BMK10 hydraulic motors, call our sales team

on +86-311-68123061 or WhatsApp 008613831101542.
