Omp 200 Danfoss Hydraulic Motor 11185705 Replacement ø25.4 Rear Ports

Name: Omp 200 Danfoss Hydraulic Motor 11185705 Replacement ø254 Rear Ports
Brand: HANJIU
Price: 60 USD

Quality Omp 200 Danfoss Hydraulic Motor 11185705 Replacement ø25.4 Rear Ports wholesale

Brand Name : HANJIU

Model Number : 11185705 OMPX200

Certification : CE

Place of Origin : China

MOQ : 100 Pieces

Price : 60 USD

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 10000 pieces per year

Delivery Time : 55 work days

Packaging Details : Box, Pallet

Item : Hydraulic Motor

OEM # : 11185705 Danfoss OMPX200

Manufacturer : Hanjiu

Displacement : 200ml/r

Mounting flange : 2-hole wheel flange

Shaft type : Straight

Contact Now

OMPX200 Danfoss Hydraulic Motor 11185705 Replacement - Ø25.4 - rear ports

Specifications:

Type	BMP ( OMPX similar )
Displacement	200
Shaft	cylindrical shaft Ø25.4 mm Flange SAE
Flange	A 2 bolt - centring 82.5 mm
Port Position	End Rear ports
Port Size	1/2 BSP
Drain	Yes
ref Danfoss	151-5192

Main Specifications:

Technical data for BMP with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type		BMP BMPH BMPW 36	BMP BMPH BMPW 50	BMP BMPH BMPW 80	BMP BMPH BMPW 100	BMP BMPH BMPW 125	BMP BMPH BMPW 160	BMP BMPH BMPW 200	BMP BMPH BMPW 250	BMP BMPH BMPW 315	BMP BMPH BMPW 400	BMP BMPH BMPW 500
Geometric displacement (cm3 /rev.)		36	51.7	77.7	96.2	120.2	157.2	194.5	240.3	314.5	389.5	486.5
Max. speed (rpm)	cont.	1500	1150	770	615	490	383	310	250	192	155	120
Max. speed (rpm)	int.	1650	1450	960	770	615	475	385	310	240	190	150
Max. torque (N·m)	cont.	55	100	146	182	236	302	360	380	375	360	385
	int.	76	128	186	227	290	370	440	460	555	525	560
	peak	96	148	218	264	360	434	540	550	650	680	680
Max. output (kW)	cont.	8	10	10	11	10	10	10	8.5	7	6	5
Max. output (kW)	int.	11.5	12	12	13	12	12	12	10.5	8.5	7	6
Max. pressure drop (MPa)	cont.	12.5	14	14	14	14	14	14	11	9	7	6
	int.	16.5	17.5	17.5	17.5	17.5	17.5	17.5	14	14	10.5	9
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	18	16	14	12
Max. flow (L/min)	cont.	55	60	60	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	60	75	75	75	75	75	75	75	75	75	75
Weight (kg)		5.6	5.6	5.7	5.9	6	6.2	6.4	7	6.9	7.4	8

Technical data for BMP with 31.75 and 32 shaftt:

Type		BMP BMPH 36	BMP BMPH 50	BMP BMPH 80	BMP BMPH 100	BMP BMPH 125	BMP BMPH 160	BMP BMPH 200	BMP BMPH 250	BMP BMPH 315	BMP BMPH 400	BMP BMPH 500
Geometric displacement (cm3 /rev.)		36	51.7	77.7	96.2	120.2	157.2	194.5	240.3	314.5	389.5	486.5
Max. speed (rpm)	cont.	1500	1150	770	615	490	383	310	250	192	155	120
Max. speed (rpm)	int.	1650	1450	960	770	615	475	385	310	240	190	150
Max. torque (N·m)	cont.	55	100	146	182	236	302	360	460	475	490	430
	int.	76	128	186	227	290	370	440	570	555	580	560
	peak	96	148	218	264	360	434	540	670	840	840	780
Max. output (kW)	cont.	8	10	10	11	10	10	10	8.5	7	6	6
Max. output (kW)	int.	11.5	12	12	13	12	12	12	10.5	8.5	7	7
Max. pressure drop (MPa)	cont.	12.5	14	14	14	14	14	14	14	12	9.5	7
	int.	16.5	17.5	17.5	17.5	17.5	17.5	17.5	17.5	14	11.5	9
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	18	13
Max. flow (L/min)	cont.	55	60	60	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	60	75	75	75	75	75	75	75	75	75	75
Weight (kg)		5.6	6	5.7	5.9	6	6.2	6.4	7	6.9	7.4	8

* Continuous pressure:Max.value of operating motor continuously.

* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .

* Peak pressure:Max.value of operating motor in 0.6 second per minute.

This is an Orbital motor, not made by Danfoss, but made by Hanjiu. Danfoss distributors and users use this motor as a high-quality replacement motor for Danfoss 151-5192. Hanjiu Technology is manufacturer of hydraulic motors ( orbital motors ). We are experts when it comes to all Danfoss, Eaton, M+S, BREVINI, PARKER, WHITE similar Orbital Motors, including the above OMP motors with SAE A 2 Bolt 1" Key Shaft 1/2" BSP Ports. For technical advice or more informations, kindly contact our sales team on +86-311-68123061 or WhatsApp 008613831101542.

Omp 200 Danfoss Hydraulic Motor 11185705 Replacement ø25.4 Rear Ports

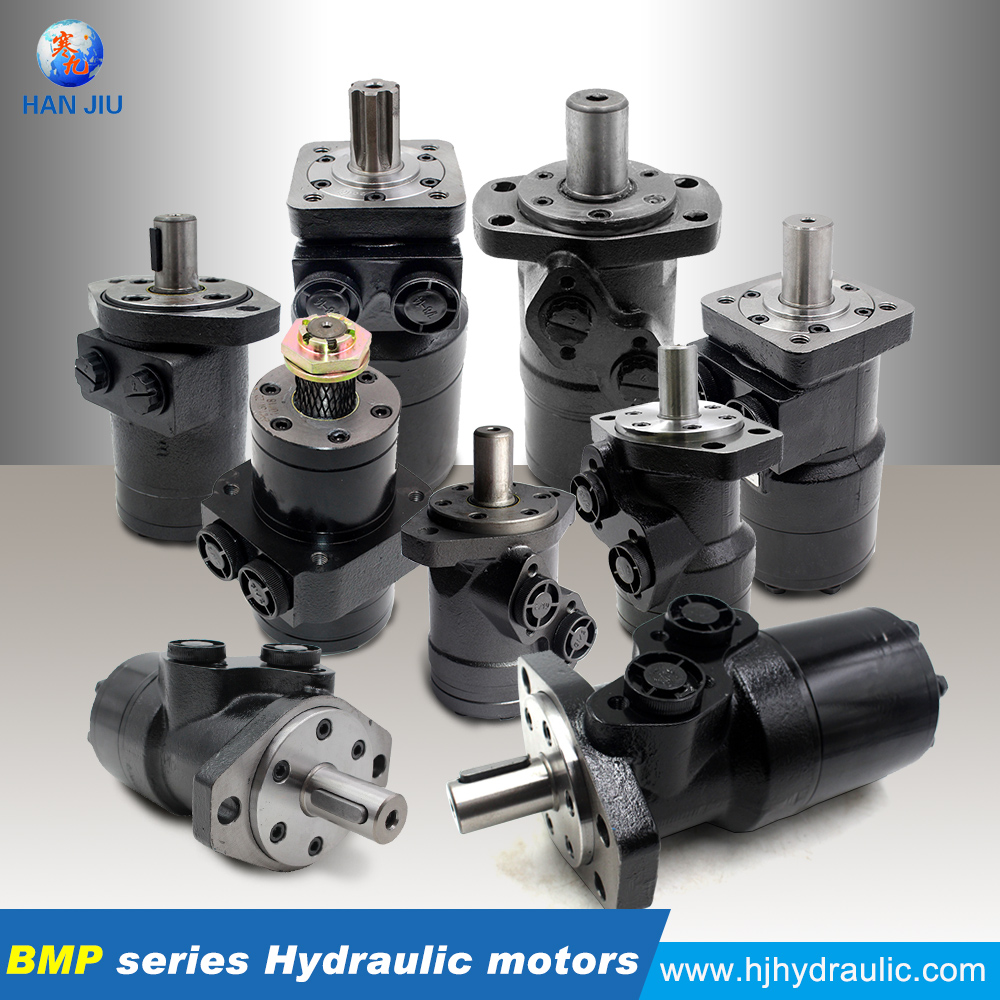

A variety of mounting flange types, a variety of output shaft types, and a variety of displacements can meet all your installation and use requirements. For BMM, BMP, BMR, BMH, BMS, BMSY, BMT, BMV, BMK2, BMK4, BMK6, BMK10 hydraulic motors, call our sales team

on +86-311-68123061 or WhatsApp 008613831101542.
