Cylindrical Shaft 25.4mm Gerotor Hydraulic Motor 2 Bolt Flange Pipe Port BME2-300-HM-K-R-01

Product Categories
Shijiazhuang Hanjiu Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Cylindrical Shaft 25.4mm Gerotor Hydraulic Motor 2 Bolt Flange Pipe Port BME2-300-HM-K-R-01

  • 1
  • 2
  • 3

Brand Name : HANJIU

Model Number : BME2-300-HM-K-R-01

Certification : CE

Place of Origin : China

MOQ : 100 Pieces

Price : 48 - 60 usd

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Payple

Supply Ability : 70000 pieces per year

Delivery Time : 10 - 15 work days

Packaging Details : 1 pc/ inner carton, 3 pcs/ outer carton, 27x40x14cm, transport with wooden pallet, 1500 pcs/ 20GP, 3000 pcs/ 40GP

Type : Gerotor hydraulic motor

Manufacturer : HANJIU

Model : BME2-300-HM-K-R-01

Displacement : 300 ml/r

Features : compatible with Parker

Replace : TE, TB, TC Series

Contact Now

Parker Gerotor Motor Aftermarket, ​Cylindrical Shaft Ø25.4, 2 bolt flange, pipe port, BME2-300-HM-K-R

This is a Parker TE aftermarket motor. it's not made by Parker, it's made by Hanjiu from China, which is our specialty.

Spec:

Type BME2
295
Geometric displacement (cm3 /rev.) 287.8
Max. speed (rpm) cont. 196
int. 254
Max. torque (N•m) cont. 393
int. 547

Quick review : BME2-300-HM-K-R-01

Displacement : 300 ml/r

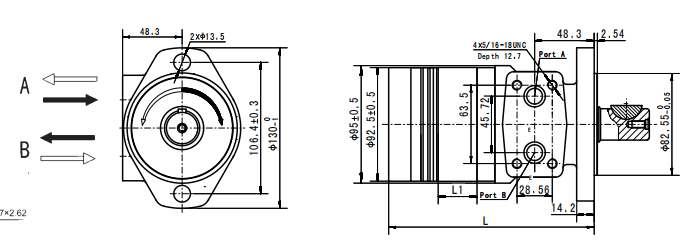

Flange,Pilot, Ports : 2-Ø13.5 Rhomb-flange,Pilot Ø82.5×2.54 , Port 1/2” Manifold mount 4×5/8-18

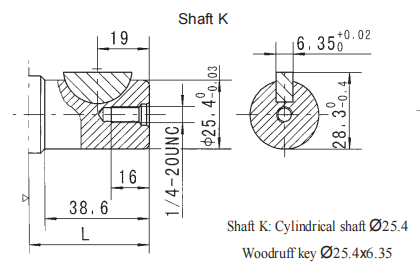

Output Shaft : Cylindrical Shaft Ø25.4, Woodruff key Ø25.4×6.35

Rotation Direction : Opposite

Our motors are 100% compatible with Parekr. We all have motors that can be matched with them, with the same quality, complete models and fast delivery. It can meet the demand for Parker motors of older models, increase competitiveness, reduce costs, increase turnover, and improve your prestige position in the market.


If you are looking for a Parker similar or identical motor, contact us immediately, send your request and we will work for you.

Cylindrical Shaft 25.4mm Gerotor Hydraulic Motor 2 Bolt Flange Pipe Port BME2-300-HM-K-R-01

Cylindrical Shaft 25.4mm Gerotor Hydraulic Motor 2 Bolt Flange Pipe Port BME2-300-HM-K-R-01

Cylindrical Shaft 25.4mm Gerotor Hydraulic Motor 2 Bolt Flange Pipe Port BME2-300-HM-K-R-01
