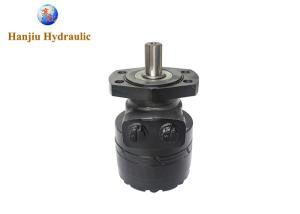

TG Replacement Parker Hydraulic Motor 4-13.5 Magneto Mount Ports 7/8-14 O Ring Counterclockwise

Product Categories
Shijiazhuang Hanjiu Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

TG Replacement Parker Hydraulic Motor 4-13.5 Magneto Mount Ports 7/8-14 O Ring Counterclockwise

  • 1
  • 2
  • 3

Brand Name : HANJIU

Model Number : BMER-2-300-MSX-SW-R

Certification : CE

Place of Origin : China

MOQ : 100 Pieces

Price : start from 150 usd

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Payple

Supply Ability : 70000 pieces per year

Delivery Time : 10 - 15 work days

Packaging Details : 1 pc/ inner carton, 3 pcs/ outer carton, 27x40x14cm, transport with wooden pallet, 1500 pcs/ 20GP, 3000 pcs/ 40GP

Type : Gerotor hydraulic motor

Manufacturer : HANJIU

Model : BMER-2-300-MSX-SW-R

Displacement : 300 ml/r

Features : compatible with Parker TG

Rotation : Counterclockwise

Contact Now

Parker Motors, TG replacement, 4-Ø13.5 Magneto Mount, Ports 7/8-14 O-ring, Counterclockwise

This is a Parker TG aftermarket motor. it's not made by Parker, it's made by Hanjiu from China, which is our specialty.

Spec:

Type BMER
300
Geometric displacement (cm3 /rev.) 296
Max. speed (rpm) cont. 250
int. 315
Max. torque (N•m) cont. 810
int. 930
Max. output (kW) cont. 1120
int. 18
peak 21
Max. pressure drop (MPa) cont. 20.5
int. 24
peak 27.6
Max. flow (L/min) cont. 80
int. 95

Quick review : BMER-2-300-MSX-SW-R

Displacement : 300 ml/r

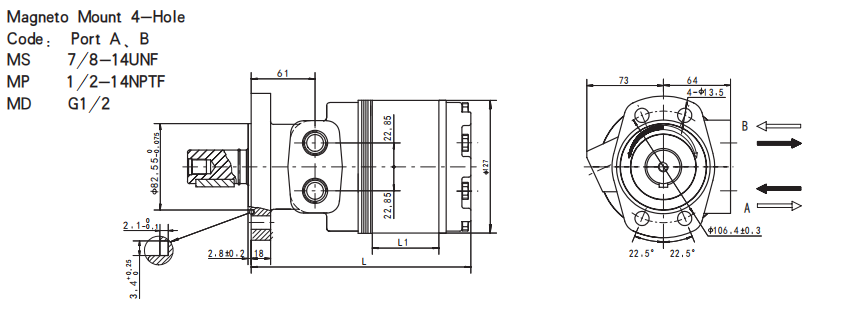

Flange,Pilot, Ports : 4-Ø13.5 Magneto Mount,Pilot Ø82.55×2.8, Ports 7/8-14 O-ring

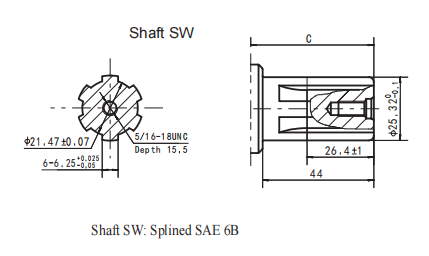

Output Shaft : Shaft Ø25.4 ,splined key SAE 6B

Rotation Direction : Reverse Timed

Our motors are 100% compatible with Parekr. We all have motors that can be matched with them, with the same quality, complete models and fast delivery. It can meet the demand for Parker motors of older models, increase competitiveness, reduce costs, increase turnover, and improve your prestige position in the market.


If you are looking for a Parker similar or identical motor, contact us immediately, send your request and we will work for you.

TG Replacement Parker Hydraulic Motor 4-13.5 Magneto Mount Ports 7/8-14 O Ring Counterclockwise

TG Replacement Parker Hydraulic Motor 4-13.5 Magneto Mount Ports 7/8-14 O Ring Counterclockwise

TG Replacement Parker Hydraulic Motor 4-13.5 Magneto Mount Ports 7/8-14 O Ring Counterclockwise
