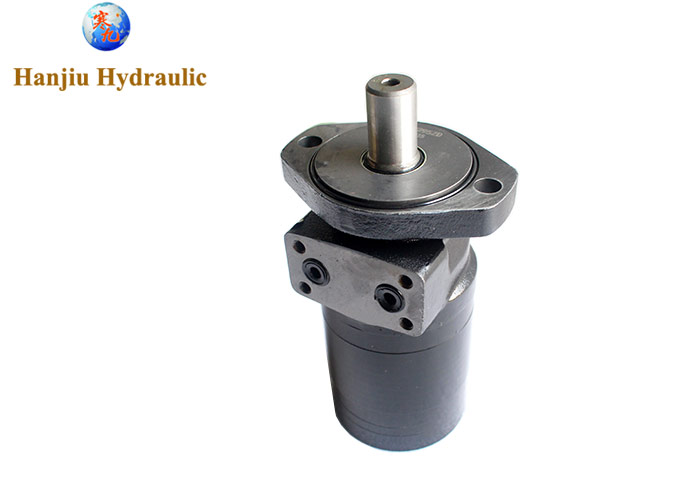

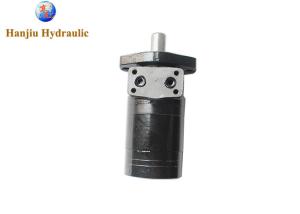

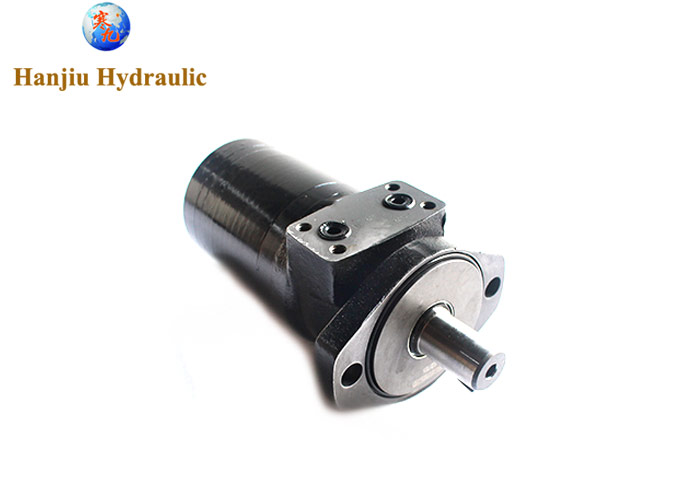

LSHT Parker Torqmotors Nichols Motors 1" Woodruff Key TE Series TE0295AM100AAAA

TE Series TE0295AM100AAAA LSHT Torqmotors And Nichols Motors

This medium duty motor has higher pressure ratings than the TB motor, for applications requiring higher torque.

Robust roller bearings withstand higher side loads and are suitable for chain and sprocket shaft connections.

It uses high pressure shaft seals, robust roller bearings and high flow shaft seal cooling.

Main Specifications:

Type		BME2	BME2	BME2	BME2	BME2	BME2	BME2	BME2	BME2	BME2	BME2
		65	80	100	125	160	200	230	250	295	315	375
Geometric displacement		66.8	81.3	101.6	127	157.2	193.6	226	257	287.8	314.5	370
(cm3 /rev.)
Max. speed (rpm)	cont.	667	543	439	350	283	229	247	216	296	178	152
	int.	842	689	553	441	355	289	328	287	254	235	199
Max. torque (N*m)	cont.	126	157	191	245	307	382	378	381	393	448	439
	int.	176	215	268	335	422	520	528	543	547	587	613
Max. output (kW)	cont.	8.3	8.8	7.9	8.9	8.9	9	9.9	9.3	8.7	8	7.6
	int.	13.9	14.4	13.5	14.1	15.6	15.7	17.9	16.5	15.6	14.3	14
Max. pressure drop (MPa)	cont.	14	14	14	14	14	14	12	11	10	10	9
	int.	19	19	19	19	19	19	16.5	15.5	14.5	13.5	12.5
	peak	20	20	20	20	20	20	18	18	17	16	16
Max. flow (L/min)	cont.	45	45	45	45	45	45	57	57	57	57	57
	int.	57	57	57	57	57	57	75	75	75	75	75

1,	model number	BME2-295-HM-K-R-B
2,	displacement	295ml/r
3,	flange	2-13.5 Magneto Mount
4,	shaft	key shaft,woodruff key
5,	oil port	φ12.7
6,	drain	---
7,	rotation	Standard
8,	paint	Black
9,	replace	Parker TE TG TF

Other types we supply:

TE0260AM100AAAB

TE0260AM100AAAG

TE0260AM110AAAA

TE0260AM110AAAB

TE0260AM130AAAA

TE0260AM130AAAB

TE0260AM250AAAA

TE0260AP090AAAA

TE0260AP100AAAA

TE0260AP100AAAB

TE0260AP100AAAC

TE0260AP110AAAA

TE0260AP110AAAB

TE0260AP130AAAA

TE0260AP260AAAA

TE0260AR100AAAB

TE0260AS010AAAA

TE0260AS010AAAC

TE0260AS090AAAA

TE0260AS090AAAB

TE0260AS100AAAA

TE0260AS100AAAB

TE0260AS110AAAA

TE0260AS110AAAB

TE0260AS110AALW

TE0260AS130AAAA

TE0260AS130AAAB

TE0260AS130AAAC

TE0260AS210AAAB

TE0260AS210AAAC

TE0260AS210AAAG

TE0260AS210AAXB

TE0260AS210AAXK

TE0260AS211AAAC

TE0260AS220AAAA

TE0260AS250AAAA

TE0260AS260AAAB

TE0260AS660AAAA

TE0260AS660AAAB

TE0260AT100AAAB

TE0260AW260AAAA

TE0260CT260AAAA

TE0260DS141AAAA

TE0260FM100AAAA

TE0260FM100AAAB

TE0260FM100HAAA

TE0260 50AAAA

TE0260FP010AAAA

TE0260FP100AAAA

TE0260FP100AAAB

TE0260FP100AAAH

TE0260FP110AAAA

TE0260FP110AAAB

TE0260FP130AAAA

TE0260FP130AAAB

TE0260FR010AAAA

TE0260FR100AAAA

TE0260FR100AAAB

TE0260FR100AAFA

TE0260FR130AAAA

TE0260FR140AAAB

TE0260FR220AAAB

TE0260FS010AAAA

TE0260FS090AAAB

TE0260FS100AAAA

TE0260FS100AAAB

TE0260FS100AAAC

TE0260FS100AABJ

TE0260FS100AAFA

TE0260FS100AAFW

TE0260FS101AAAB

TE0260FS101AAAW

TE0260FS130AAAA

TE0260FS130AAAB

TE0260FS210AAAB

TE0260FS250AADJ

TE0260FS280AAAA

TE0260FS330AABP

TE0260FS330AADJ

TE0260FS330AAFB

TE0260MM100BBCP

TE0260MR130AAAA

TE0260MS010AAAA

TE0260MS010AAAB

TE0260MS100AAAB

TE0260MS110AAAB

TE0260MS130AAAA

TE0260MS250AABP

TE0260MS260AAAA

TE0260MS260BBCN

TE0260UR130AAAB

TE0260UR250AAAB

TE0260UR250AAAG

TE0260US100AAAB

TE0260US110AAAA

TE0260US120AAAA

TE0260US250AAAB

TE0260US250AAAF

TE0260US250AAAG

TE0260US250AAAJ

TE0260US250AADD

TE0260US250AAFB

TE0260US250AALF

TE0260US260AAAB

TE0295AM100AAAA

TE0295AM100AAAB

TE0295AM100HAAB

TE0295AM110AAAA

TE0295AM110AAAB

TE0295AM220AAAA

TE0295AM250AAAA

TE0295AP010AAAA

TE0295AP100AAAA

TE0295AP100AAAB

TE0295AP100AAAC

TE0295AP110AAAA

TE0295AP110AAAB

TE0295AP130AAAA

TE0295AP220AAAA

TE0295AP220AAAB

TE0295AP260AAAA

TE0295AR100AAAA

TE0295AR110AAAB

TE0295AS010AAAA

TE0295AS010AAAB

TE0295AS010AAAC

TE0295AS010AABJ

TE0295AS100AAAA

TE0295AS100AAAB

TE0295AS100AAAC

TE0295AS100FSAA

TE0295AS110AAAA

TE0295AS110AAAB

TE0295AS120AAAC

TE0295AS130AAAA

TE0295AS130AAAB

TE0295AS130AAAC

TE0295AS130AAAG

TE0295AS130AANU

TE0295AS130AAUU

TE0295AS210AAAB

TE0295AS210AAAC

TE0295AS220AAAA

TE0295AS260AAAB

TE0295AS660AAAA

TE0295AT220AAAA

TE0295AT260AAAA

TE0295AT260AAAB

TE0295CT260AAAA

TE0295DT260AAAA

TE0295FM100AAAB

TE0295FM100AAFA

TE0295FM110AAAB

TE0295 10AAAC

TE0295FP100AAAA

TE0295FP100AAAB

TE0295FP100AAAC

TE0295FP100FSAA

TE0295FP110AAAA

TE0295FP110AAAB

TE0295FP120AAAB

TE0295FP130AAAA

TE0295FP130AAAB

TE0295FP210AAAC

TE0295FR100AAAA

TE0295FR100AAAB

TE0295FR130AAAA

TE0295FR250AAAA

TE0295FS010AAAA

TE0295FS100AAAA

TE0295FS100AAAB

TE0295FS100AAAH

TE0295FS100FSAA

TE0295FS110AAAA

TE0295FS120AAAB

TE0295FS130AAAA

TE0295FS130AAAB

TE0295FS210AAAA

TE0295FS210AAAB

TE0295FS250AAAB

TE0295FS260AAAA

TE0295FS330AAFB

TE0295MN260AAAB

TE0295MR100AAAA

TE0295MS010AAAB

TE0295MS100AAAA

TE0295MS100AAAB

TE0295MS110AAAA

TE0295MS110AAAB

TE0295MS130AAAA

TE0295MS260AAAA

TE0295MT260AAAC

TE0295NS100AAAB

TE0295UR120AAAB

TE0295UR130AAAB

TE0295UR250AAAA

TE0295UR250AAAB

TE0295UR250AAAF

TE0295UR250AAAJ

TE0295US100AAAA

TE0295US100AAAB

TE0295US110AAAA

TE0295US110AABJ

TE0295US120AAAA

TE0295US120AAAB

TE0295US120AAAF

TE0295US120AACP

TE0295US130AAAB

TE0295US250AAAA

TE0295US250AAAF

TE0295US250AAAJ

TE0295US250AABP

TE0295US250AACP

TE0295YT260AAAC

TE0330AM100AAAA

TE0330AM100AAAB

TE0330AM130AAAB

TE0330AM220AAAA

TE0330AM260AAAC
