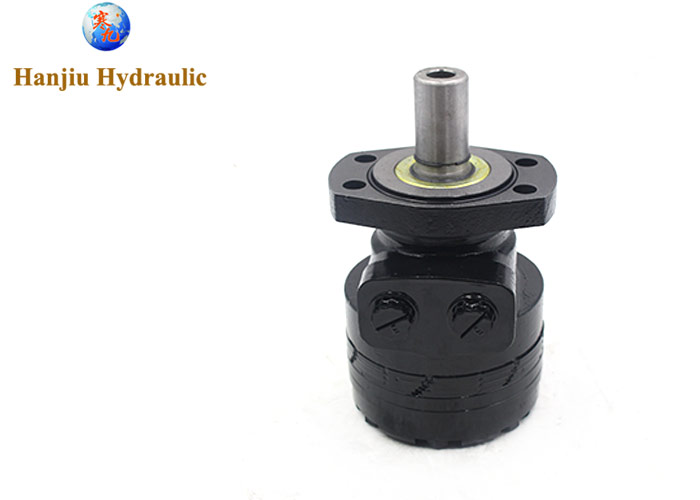

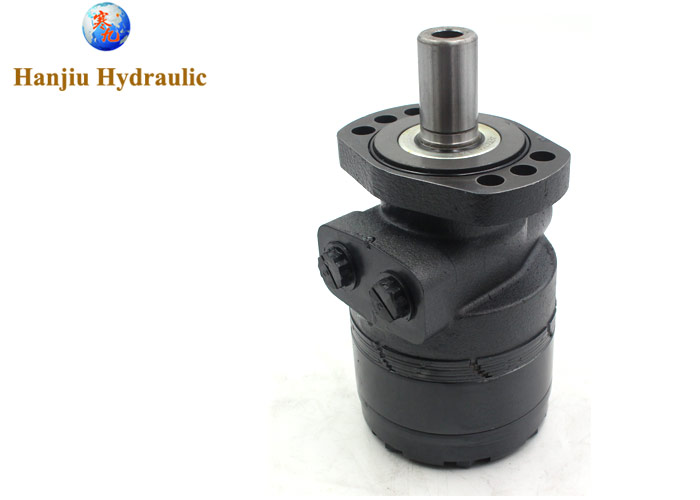

500470a5102aaaaa Cross White Hydraulic Motor Re26180200 Roller Stator Danfoss

  • 1
  • 2
  • 3

Brand Name : HANJIU

Model Number : BMER-475

Certification : CE

Place of Origin : CHINA

MOQ : 30 Sets

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 300000 sets per year

Delivery Time : 10-15 work days

Packaging Details : Carton Packing and finally with a Tray, or Wooden Box

Type : Hydraulic Drive Motor

Speed : cont160rpm/int.195rpm

Warranty : 1year

torque : cont.1085/int.1180 N.m

output : 14.5kw-16.5kw

pressure : 17.5mpa-19mpa

Contact Now

500470A5102AAAAA Cross White Hydraulic Motor RE26180200 Roller Stator Danfoss

.

Product details:

1, model number BMER
2, displacement 475ml/r
3, flange magneto Mount
4, shaft SAE 6B
5, oil port 7/8-14 o-ring
6, drain ---
7, rotation Standard
8, paint Black
9, replace white RE


Main Specifications:

Type

BMER

125

BMER

160

BMER

200

BMER

230

BMER

250

BMER

300

BMER

350

BMER

375

BMER

475

BMER

540

BMER

750

Geometric displacement

(cm3 /rev.)

 118 156 196 228 257 296 345 371 462 540 745
Max. speed (rpm) cont. 360 375 330 290 290 250 220 200 160 140 100
int. 490 470 425 365 350 315 270 240 195 170 120
Max. torque (N*m) cont. 325 450 530 625 700 810 905 990 1085 980 1050
int. 380 525 600 710 790 930 1035 1140 1180 1240 1180
peak 450 590 750 870 980 1120 1285 1360 1260 1380 1370
Max. output (kW) cont. 12.0 15 15.5 16.0 17.5 18.0 17.5 16.5 14.5 11.5 8.0
int. 14.0 17.5 18.0 19.0 20.0 21.0 20.0 19.0 16.5 15.0 10.0
Max. pressure drop (MPa) cont. 20.5 20.5 20.5 20.5 20.5 20.5 20.5 20.5 17.5 14 10.5
int. 24 24 24 24 24 24 24 24 19 17.5 12
peak 27.6 27.6 27.6 27.6 27.6 27.6 27.6 27.6 20.5 20.5 14
Max. flow (L/min) cont. 45 60 70 70 75 80 80 75 75 75 75
int. 60 75 85 85 90 95 95 90 90 90 90


Other types

RE18070400

RE24070300

RE26080410

RE18070310

500470a5102aaaaa Cross White Hydraulic Motor Re26180200 Roller Stator Danfoss

500470a5102aaaaa Cross White Hydraulic Motor Re26180200 Roller Stator Danfoss

500470a5102aaaaa Cross White Hydraulic Motor Re26180200 Roller Stator Danfoss

500470a5102aaaaa Cross White Hydraulic Motor Re26180200 Roller Stator Danfoss

Low Speed High Torque (LSHT) hydraulic motors orbit type motors that interchange with Parker hydraulic motors, Danfoss hydraulic motors, White Drive Products hydraulic motors, TRW Ross hydraulic motors and Eaton Char-Lynn hydraulic motors. Honor Pumps high speed, low torque hydraulic gear motors that interchange with Barnes Contcentric hydraulic motors. Anfield Industries hydraulic motors.

All hydraulic motors that are promoted as a "Drop in replacement for" meet or exceed the specifications of the the hydraulic motor that they are replacing. These hydraulic motors are a direct replacement for fit, form and function. All hydraulic motors that HANJIU Technology Supply offer have a 12 month warranty from date of shipment.

  • Char-Lynn Hydraulic Motor Interchange

  • Danfoss Hydraulic Motor Interchange

  • Gear Type 2 Bolt Flange

  • High Speed High Torque Hydraulic Vane Motors

  • Low speed High torque

  • OEM Replacement Hydraulic Motors

  • Parker Hydraulic Motor Interchange

  • Prince Hydraulic Motor Interchange

  • Ross Hydraulic Motor Interchange

  • Snow Removal Hydraulic Motors

  • White Hydraulic Motor Interchange
