151b3016 Orbit Hydraulic Motor Omt 400cc With 45mm Taper Shaft Side Port Replacement

  • 1
  • 2
  • 3

Brand Name : HANJIU

Model Number : 151B3016

Certification : CE

Place of Origin : China

MOQ : 100 Pieces

Price : 160 - 210 usd

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Payple

Supply Ability : 70000 pieces per year

Delivery Time : 10 - 15 work days

Packaging Details : 1 pc/ inner carton, 3 pcs/ outer carton, 27x40x14cm, transport with wooden pallet, 1500 pcs/ 20GP, 3000 pcs/ 40GP

Type : Orbit hydraulic motor

Brand : Hanjiu

Hanjiu modell : BMT 400

Danfoss code : 151B3016

Shaft : 45mm

Flange : Standard

Contact Now

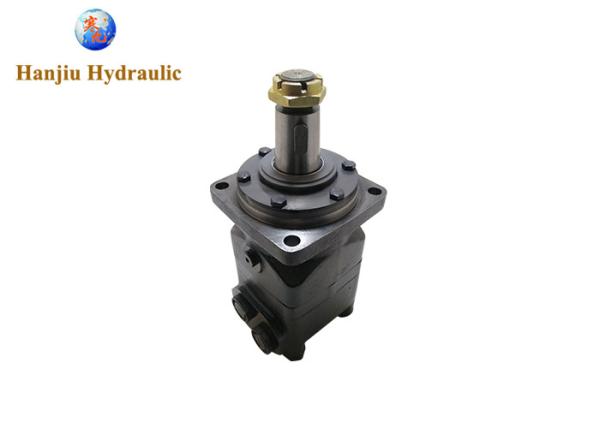

151B3016 - ORBITAL MOTOR OMT 400CC with 45mm taper shaft Side port , replacement

This is 151B3016 Danfoss replacement Orbital Motor

Shaft Style Tapered - Cone 1:10
Shaft Size 45 mm tap
Shaft Key B12 x 8 x 28 mm (DIN 6885)
Port Style Side port
Port Dimension G 3/4
Drain Port Style Standard
Drain Port Dimension G 1/4
Painted None
Geometric Displacement 410,9 [25.07]
Max Inlet Pressure Cont 210 [3050]
Max Inlet Pressure Int 250 [6330]

Orbital Motors

We provide a wide range of hydraulic motors of different types, sizes, and with different versions of outlet shaft. The range includes motors with displacements from 8 to 1000 cc/rpm. The speed may vary approximately from 2500 rpm/min for the smallest motor up to 600 rpm/min for the largest one.

Orbital motor for heavy applications.Shaft with taper roller bearings ensures high static and dynamic bearing capacity. Orbit kit with rollers, separate integrated valve. High volumetric and mechanical efficiency. Long durability at high pressure. BMT has internal flush valves.

Contact us today to discuss your questions or application needs with our team.
