Brand Name : HANJIU
Model Number : 1041968006
Certification : CE
Place of Origin : China
MOQ : 100 Pieces
Price : 99 - 129 usd
Payment Terms : L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability : 70000 pieces per year
Delivery Time : 10 - 15 work days
Packaging Details : 1 pc/ inner carton, 3 pcs/ outer carton, 27x40x14cm, transport with wooden pallet, 1500 pcs/ 20GP, 3000 pcs/ 40GP
Type : Orbit hydraulic motor
Brand : Hanjiu
Hanjiu modell : 1041968006
Feature : MEDIUM-SPEED MOTOR
Shaft : splined
Apply to : Atlas Copco

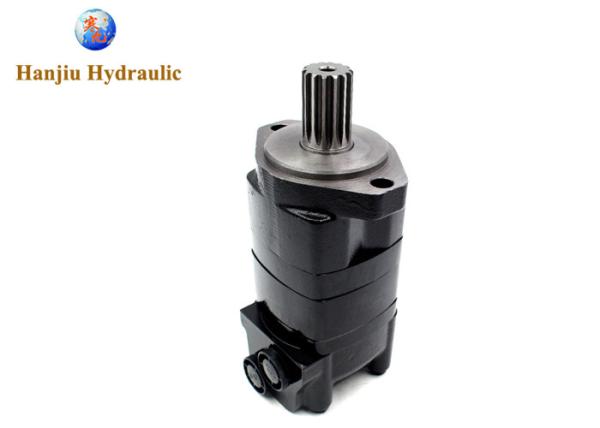

Char-Lynn Eaton 1041968006 Hydraulic Motor Atlas Copco rock drilling drifter spare parts Hydraulic Motor
This is a Char-lynn Eaton 1041968006 replacement Hydraulic Motor. It is wuitable for Atlas Copco rock drilling drifter. It's best choice for rock drill drifter spare parts dealers and users.
Description
Hydraulic Geroler Disc Valve Motor | 2000 - Standard, 101.6 cm³/r Max Geometric Displacement |
Displacement | 6.20 in³/r |
Continuous Torque | 2611 in-lbs |
Maximum RPM | 742 rpm |
Mounting Type | 2-Bolt Flange - 3.25 in Pilot - SAE A |
Motor Port Type | Straight Thread O-Ring SAE |
Motor Port Size | 7/8–14 UNF-2B |
Shaft Type | Splined |
Maximum Flow Rate | 20 gpm |
Maximum Operating Temperature | 180 °F |
Port Orientation | Staggered Ports |
Actual Mounting Flange | Standard, 2 Bolt; 82.6 [3.25] Pilot Dia. 13.59 [.535] Dia. Holes On 106.4 [4.19] Dia. Bolt Circle (SAE A) |
We have range of hydraulic motors to replace Char-lynn Eaton.
We have range of hydraulic motors to suit range of applications and brands.
![]() |
742 Rpm Char Lynn Eaton Hydraulic Motor Atlas Copco Rock Drilling Drifter Spare Parts Images |
