Brand Name : HANJIU
Model Number : 501300A3120ZAAAA
Certification : CE
Place of Origin : China
MOQ : 100 Pieces
Price : Contact the seller to get a quote
Payment Terms : L/C, D/A, D/P, T/T, Western Union
Supply Ability : 10000 pieces per year
Delivery Time : 55 work days
Packaging Details : Box, Pallet
Item : Torqmotor
OEM # : 501300A3120ZAAAA
Manufacturer : Hanjiu
Displacement : 130 ml/r
Mounting flange : 4-hole
Shaft type : key shaft
Quick review:

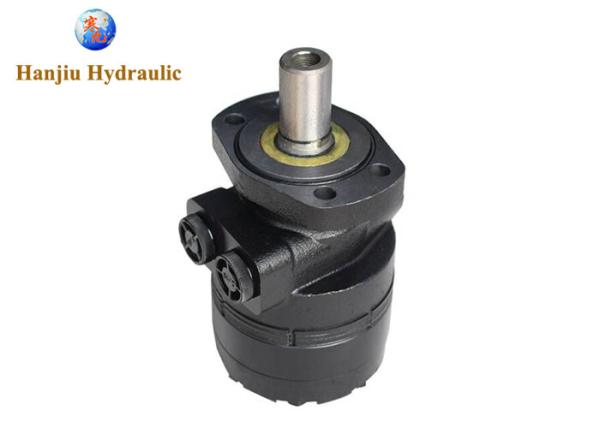

Drop in equivalent to White Drive Products 501300A3120ZAAAA hydraulic motor. Low speed, high torque. 18.08 cubic inch displacement. 4-Hole mount. Key shaft. 7/8"-14 SAE ports. 250 RPM maximum speed. 7169 inch lbs. of torque. 19.81 GPM maximum flow rate. 2973 PSI maximum pressure differential. Clockwise rotation.
RE Series motors offer the perfect compromise between price and performance by producing power at a reasonable cost. Although these motors perform well in a wide range of applications they are especially suited for low flow high pressure applications. During startup pressure causes the balance plate to flex toward the rotor vastly improving volumetric efficiency. As the motor reaches operating pressure the balance plate relaxes allowing the rotor to turn freely which translates into higher mechanical efficiencies. Torque is transmitted to the output shaft through the most durable drive link in its class.
Small Frame Low Speed, High Torque Motor
Manufacturer: Hanjiu
Details specifications
Series: | RE |
Shaft: | Key shaft |
Rotation: | Clockwise rotation |
Displacement (cm3/rev): | 18.08 cubic inch |
Mounting: | 4 Bolt |
Geometric Displacement: | 130 cm3/rev (8.0 in3/rev) |
More Parker type Torque motors:
TB, TC, TJ, TE, TF, TG, TK
![]() |
