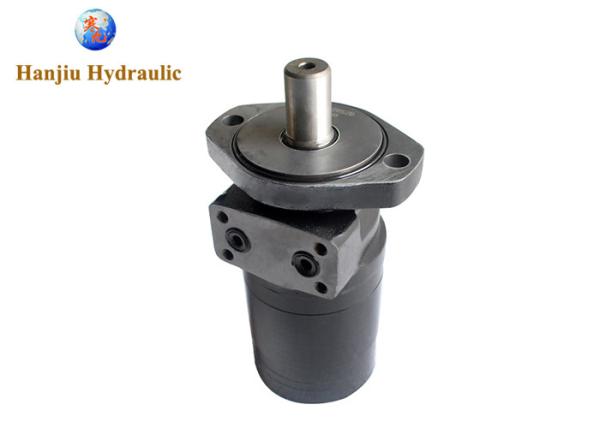

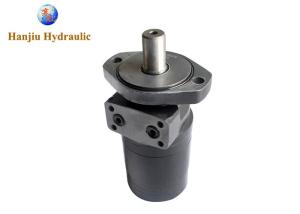

Te0195 Te Orbit Hydraulic Motor Torqmotor Sae "A" 2 Bolt 195 Cm3/Rev 1" Keyed

Name: Te0195 Te Orbit Hydraulic Motor Torqmotor Sae quotAquot 2 Bolt 195 Cm3Rev 1quot Keyed
Brand: HANJIU
Price: 1 USD

Quality Te0195 Te Orbit Hydraulic Motor Torqmotor Sae "A" 2 Bolt 195 Cm3/Rev 1" Keyed wholesale

Brand Name : HANJIU

Model Number : TE0195AS100AAAA

Certification : CE

Place of Origin : China

MOQ : 100 Pieces

Price : Contact the seller to get a quote

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 10000 pieces per year

Delivery Time : 55 work days

Packaging Details : Box, Pallet

Item : Torqmotor

OEM # : TE0195AS100AAAA

Manufacturer : Hanjiu

Displacement : 195 ml/r

Mounting flange : 2-hole

Shaft type : 1" Keyed

Contact Now

TE0195 TE Series Torqmotor, SAE "A" 2 Bolt, 195 cm3/rev, 1" Keyed

Quick review:

Drop in equivalent to TE0195AS100AAAA Parker low speed, high torque hydraulic motor. 12.16 cu. in. / rev displacement. Maximum pressure 1914 PSI continuous, maximum pressure 2576 PSI intermittent. Torque 3168 in-lb. continuous, torque 3965 in-lb. intermittent. Maximum speed 300 RPM continuous. Flow rate 15.8 GPM. 1" diameter shaft with woodruff key. 7/8-14 SAE ports. 2 Bolt SAE mounting flange. 1 year warranty.

LSHT Torqmotors
Manufacturer: Hanjiu

This medium duty motor has higher pressure ratings than the TB motor, for applications requiring higher torque. Robust roller bearings withstand higher side loads and are suitable for chain and sprocket shaft connections. It uses high pressure shaft seals, robust roller bearings and high flow shaft seal cooling.

Details specifications

Series:	TE
Shaft:	1" Keyed
Rotation:	Standard
Displacement (cm3/rev):	0195
Mounting:	SAE "A" 2 Bolt
Ports:	7/8-14 SAE
Geometric Displacement:	195 cm3/rev (11.9 in3/rev)
Maximum Speed:	292 rev/min
Maximum Oil Flow (continuous / intermittent):	45 lpm (12 gpm) / 57 lpm (15 gpm)
Max. Differential Pressure (continuous / intermittent):	140 bar (2030 PSID) / 190 bar (2750 PSID)
Maximum Supply Pressure:	200 bar (2900 PSID)
Maximum Torque - Continuous / Intermittent:	390 Nm (3452 lb in) / 528 Nm (4673 lb in)
Maximum Performance:	17.4 KW (23.4 HP)
Minimum Starting Torque - Continuous / Intermittent:	312 Nm (2762 lb in) / 411 Nm (3637 lb in)
Maximum Side Load at Key:	6650 N (1500 lb)

More Parker type Torque motors:

TB, TC, TJ, TE, TF, TG, TK
