TG0300 Gerotor Hydraulic Motor SAE "A" 4 Hole Magneto Mount For Vehicle Traction Drives

Name: TG0300 Gerotor Hydraulic Motor SAE quotAquot 4 Hole Magneto Mount For Vehicle Traction Drives
Brand: HANJIU
Price: 165 USD

Quality TG0300 Gerotor Hydraulic Motor SAE "A" 4 Hole Magneto Mount For Vehicle Traction Drives wholesale

Brand Name : HANJIU

Model Number : TG0300

Certification : CE

Place of Origin : China

MOQ : 100 Pieces

Price : 165 usd for wholesale

Payment Terms : L/C, T/T, Western Union, Payple

Supply Ability : 70000 pieces per year

Delivery Time : 65 - 75 work days

Packaging Details : Carton in Wooden Box

Type : Torqmotor

Manufacturer : HANJIU

Model : TG0300

Displacement : 300 ml/r

Features : compatible with Parker tg

Flow rate : 80 lpm cont.

Contact Now

Parker TG Series Motor - TG0300, SAE "A" 4-hole Magneto Mount for Vehicle traction drives

This is a Parker TG series replacement motor, 100% compatible with TG0300 in fort, fit and function.

Suitable for customers who want to reduce costs while retaining the performance of Parker motors

Here are the technical informations:

Parker Model No.	TG0300
Hanjiu Model No.	BMER-2-300-MSX-SW-R
Flange & Port	4-Ø13.5 Magneto Mount,Pilot Ø82.55×2.8, Ports 7/8-14 O-ring
Shaft	Shaft Ø25.4 ,splined key SAE 6B
Rotation	Counter clockwise
Max. speed (rpm)	250 315
Max. torque (N•m)	810 930 1120
Max. output (kW)	18.0 21.0
Max. flow (L/min)	80 95

Some of our customers use this for Vehicle traction drives, also some customers use this on Aerial Work Platforms as boom rotate function, Winches, Conveyors, Grapples and others.

Please see pictures for details.

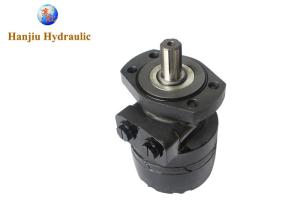

TG0300 Gerotor Hydraulic Motor SAE "A" 4 Hole Magneto Mount For Vehicle Traction Drives

Except Parker TG series, we also have TB, TC, TJ, TF, TE series. Here are more examples.

TG0300 Gerotor Hydraulic Motor SAE "A" 4 Hole Magneto Mount For Vehicle Traction Drives

Please double check my information and feel free to contact me with any questions or comments

We will do our best to meet your requirements at the best possible price and lead time.
