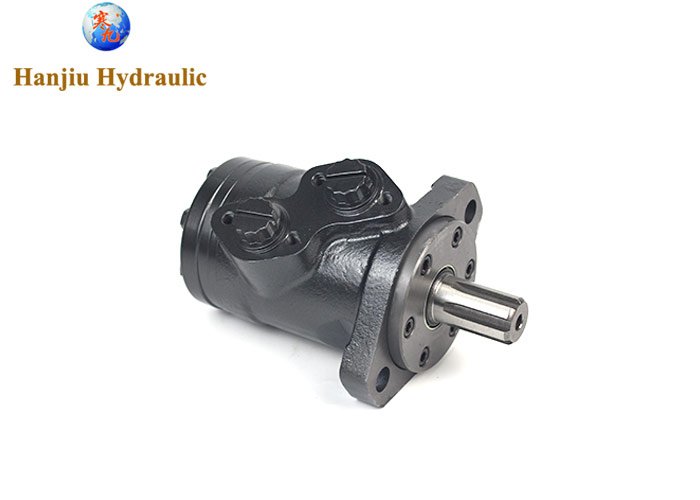

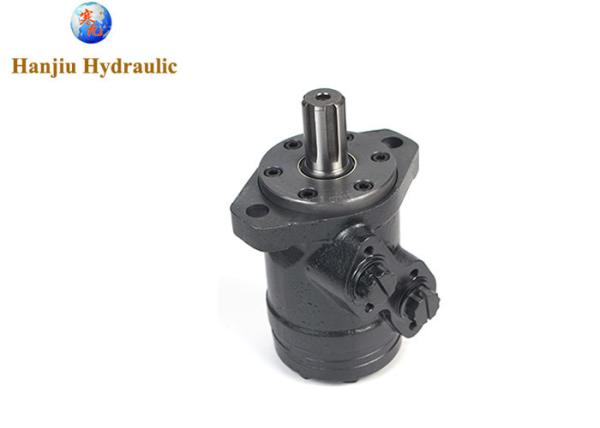

High Torque Xlh 016- Spool Valve Eaton Motor 2 Bolts Flange 1" Spline Shaft

Brand Name : HANJIU

Model Number : BMP36

Certification : ISO9001:2015

Place of Origin : China

MOQ : 50 Pieces

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Payple

Supply Ability : 70000 pieces per year

Delivery Time : 10 - 15 work days

Packaging Details : 1 pc/ inner carton, 3 pcs/ outer carton, 27x40x14cm, transport with wooden pallet, 1500 pcs/ 20GP, 3000 pcs/ 40GP

Type : high torque Eaton motor

Model No. : BMP36

Speed : 615/770rpm

Torque : 182/227 Nm

Max Power : 11/13KW

Max Flow : cont.60/int.75LPM

Contact Now

high torque Eaton XLH 016- Spool Valve Motors 2 bolts flange, 1" spline shaft

hydraulic motors specification as below


- Displacement: 36cc
- Flange A2 Ø82.55mm
- Shaft: SAE 6B,25.4mm, spline shaft
- Ports: G1/2

- Drain port:G1/4

Main specification

Specification:

Type BMP
36		 BMP
50		 BMP
80		 BMP
100		 BMP
125		 BMP
160		 BMP
200		 BMP
250		 BMP
315		 BMP
400		 BMP
500
Geometric displacement (cm3 /rev.) 36 51.7 77.7 96.2 120.2 157.2 194.5 240.3 314.5 389.5 486.5
Max. speed (rpm) cont. 1500 1150 770 615 490 383 310 250 192 155 120
int. 1650 1450 960 770 615 475 385 310 240 190 150
Max. torque (N·m) cont. 55 100 146 182 236 302 360 460 475 490 430
int. 76 128 186 227 290 370 440 570 555 580 560
peak 96 148 218 264 360 434 540 670 840 840 780
Max. output (kW) cont. 8 10 10 11 10 10 10 8.5 7 6 6
int. 11.5 12 12 13 12 12 12 10.5 8.5 7 7
Max. pressure drop (MPa) cont. 12.5 14 14 14 14 14 14 14 12 9.5 7
int. 16.5 17.5 17.5 17.5 17.5 17.5 17.5 17.5 14 11.5 9
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 18 13
Max. flow (L/min) cont. 55 60 60 60 60 60 60 60 60 60 60
int. 60 75 75 75 75 75 75 75 75 75 75
Weight (kg) 5.6 6 5.7 5.9 6 6.2 6.4 7 6.9 7.4 8

High Torque Xlh 016- Spool Valve Eaton Motor 2 Bolts Flange 1" Spline Shaft

High Torque Xlh 016- Spool Valve Eaton Motor 2 Bolts Flange 1" Spline Shaft


High Torque Xlh 016- Spool Valve Eaton Motor 2 Bolts Flange 1" Spline Shaft

HANJIU always guarantees fine quality, professional technology, reasonable price and fast delivery in the field of motors. Good profits are given to dealers, who are willing to serve the people of the world with the best attitude.

High Torque Xlh 016- Spool Valve Eaton Motor 2 Bolts Flange 1" Spline Shaft
