Brand Name : HANJIU
Model Number : BMTE-500
Certification : CE
Place of Origin : China
MOQ : 10 Pieces
Price : Negotiable
Payment Terms : L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability : 300000 pieces per year
Delivery Time : 10 - 15 work days
Packaging Details : 1 pc/ inner carton, 2 pcs/ outer carton, 31x31x17cm, transport with wooden pallet, 650 pcs/ 20GP, 1300 pcs/ 40GP
Type : HEAVY DUTY TORQMOTOR
Model No. : BMTE 500
max speed : cont.240/int.285 rpm
max torque : ocnt.1220/int.1370 N.M
max output : cont.28.8/int.35kw
max pressure : cont.16mpa/int.18mpa
Parker TK0500K5360AAAA hydraulic drive motor heavy duty torqmotors
Hanjiu hydraulic supply the BMTE motors, matching PARKER TK series motors
that is BMTE-500=TK0500
Details:
- Displacement: 500cc
- Shaft: spline shaft 17teeth
- Flange: 4-hole square flange φ161.9, pilot φ127x12
- Ports: 1-1/16-12 UN O-ring
- Genuine Parker reference: TK0500K5360AAAA
Main spec.
Type | BMTE 160 | BMTE 200 | BMTE 230 | BMTE 250 | BMTE 315 | BMTE 400 | BMTE 500 | BMTE 630 | BMTE 800 | |
Geometric displacement (cm3 /rev.) | 161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
Max. speed (rpm) | cont. | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | |
Max. torque (N·m) | cont. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
peak | 669 | 838 | 958 | 1036 | 1346.3 | 1450.3 | 1643.8 | 1618.8 | 1665 | |
Max. output (kW) | cont. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 |
int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 | |
Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 | |
Max. flow (L/min) | cont. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
Max. inlet pressure (MPa) | cont. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
peak | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
HANJIU technology provide BMTE series motors interchangable below types
TK0200K4360AAAB
TK0200K5360AAAA
TK0200K5640AAAA
TK0200T5630AAAB
TK0250K4360AAAB
TK0250K4630AAAB
TK0250K4640AAAB
TK0250K5320AAAA
TK0250K5320AAAB
TK0250K5360AAAA
TK0250K5360AAAB
TK0250K5361AAAA
TK0250K5630AAAB
TK0250K5640AAAB
TK0250T5320AAAB
TK0250T5360AAAB
TK0250T5630AAAB
TK0250T5640AAAB
TK0500K5320AAAA
TK0500K5320AAAB
TK0500K5360AAAA
TK0500K5360AAAB
TK0500K5630AAAA
TK0500K5630AAAB
TK0500K5630AAAF
TK0500K5630AABP
TK0500K5640AAAA
TK0500K5640AAAB
TK0500K5641AAAB
TK0500T4630AAAA
TK0500T5630AAAA
TK0500T5630AAAF
TK0500T5630AABP
Hanjiu Technology has a professional R&D and production team with a good reputation and rich production experience. And Hanjiu Technology always adheres to the service concept of customer first, so as to ensure the rights and interests of every customer. At Hanjiu, you can buy the best quality products in the same category at a high cost performance
Hanjiu Technology has more than ten years of experience. The hydraulic cycloid motors produced by them can completely replace the hydraulic motors manufactured by big companies such as Parker and Danfoss. You can rest assured of the quality. In addition, Hanjiu Technology always adheres to the concept of giving as much profit as possible to distributors, so the products we provide have super high cost performance.
![]() |

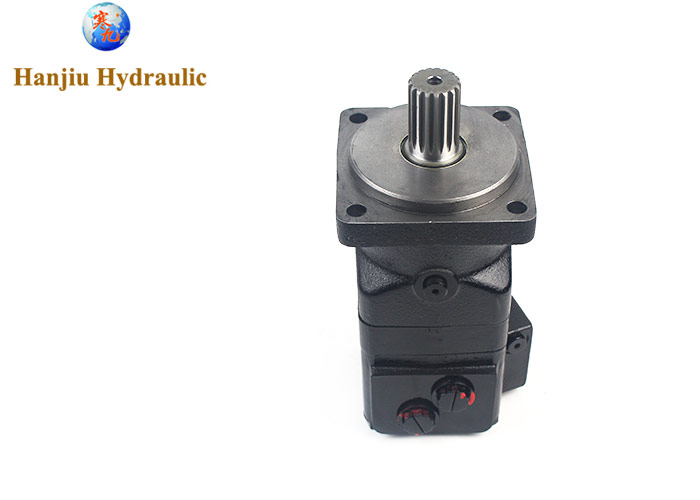

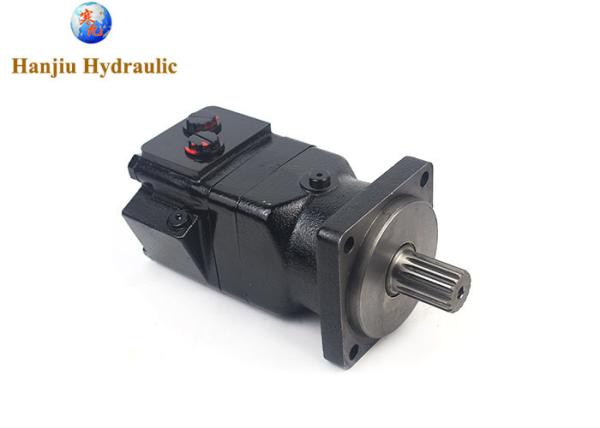

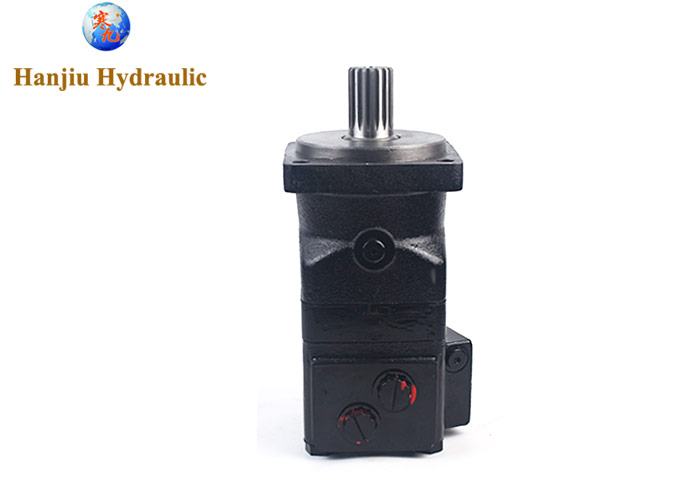

Parker Tk0500k5360aaaa Hydraulic Drive Motor Heavy Duty Torqmotors Images |
