Omr Motor Orbit Hydraulic With Integrated Holding Brake

  • 1
  • 2
  • 3

Brand Name : HANJIU

Model Number : OMR

Certification : CE

Place of Origin : China

MOQ : 100 Pieces

Price : Start from us$110

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 10000 pieces per year

Delivery Time : 55 work days

Packaging Details : Standard export package

Item : Orbital Motor

Model number : OMR

Manufacturer : Hanjiu

Feature : with rear negative break

Contact Now

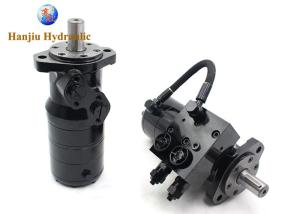

OMR Orbital with an integrated holding brake for use in both open and closed circuits

Quick review:

OMR motors to include a version with an integrated holding brake (negative brake) for use in both open and closed circuits. The brake is a spring-applied, multiple-disc type which is released by hydraulic pressure. This is an OMR Orbital Motor with negative break. It is form, fit and function compatible with Danfoss OMR F. Dealers and users of Danfoss sell and use it directly as an OMR F compatible motor.

Characteristics:

1 High holding torque
2 Compact unit with maximum brake/motor integration
3 Minimum servicing, the brake is lubricated automatically by drain oil (no separate oil change
4 Application: The brake motors are designed for hydrostatic transmissions and for applications where a load must be held in a given position.
5 Application examples : Road rollers, Work platforms, Mowing machines, Miniloaders, Sweepers, Winches, Machine tools

Parameters:

Type BMR
BMRS
36		 BMR
BMRS
50		 BMR
BMRS
80		 BMR
BMRS
100		 BMR
BMRS
125		 BMR
BMRS
160		 BMR
BMRS
200		 BMR
BMRS
250		 BMR
BMRS
315		 BMR
BMRS
375
Geometric displacement (cm3 /rev.) 36 51.7 81.5 102 127.2 157.2 194.5 253.3 317.5 381.4
Max. speed (rpm) cont. 1085 960 750 600 475 378 310 240 190 155
int. 1220 1150 940 750 600 475 385 300 240 190
Max. torque (N·m) cont. 72 100 195 240 300 360 360 390 390 365
int. 83 126 220 280 340 430 440 490 535 495
peak 105 165 270 320 370 460 560 640 650 680
Max. output (kW) cont. 8.5 9.5 12.5 13 12.5 12.5 10 7 6 5
int. 9.8 11.2 15 15 14.5 14 13 9.5 9 8
Max. pressure drop (MPa) cont. 14 14 17.5 17.5 17.5 16.5 13 11 9 7
int. 16.5 17.5 20 20 20 20 17.5 15 13 10
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 20 17.5 15
Max. flow (L/min) cont. 40 50 60 60 60 60 60 60 60 60
int. 45 60 75 75 75 75 75 75 75 75
Weight (kg) 6.5 6.7 6.9 7 7.3 7.6 8 8.5 9 9.5

About manufacturer:

Hanjiu is a hydraulic orbital motor manufacturer from China. Currently a strong contender in Europe for Danfoss, White, M+S, Brevini. In North America, Latin America and Australia are strong contenders for Eaton, Parker. You can get high-end motors in Hanjiu that are compatible with Danfoss, M+S, White, Dana Brevini, Eaton, Parker in form, fit and function, with a complete range, more reasonable prices, stable and fast delivery.

Contact us to discuss your needs, tell us your needs, and we will assist you in solving your difficulties and achieving a reliable and competitive supply.
