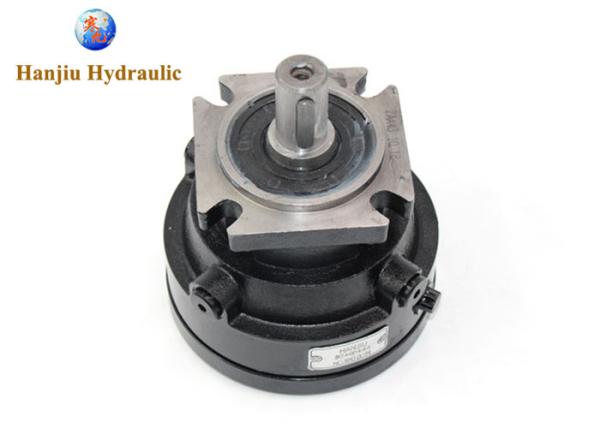

Danfoss Brakes Sb 930 Series Motor Orbit Hydraulic CE

Brand Name : HANJIU

Model Number : BK2

Certification : CE

Place of Origin : China

MOQ : 100 Pieces

Price : Send your request list to get manufacturer's best offer

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Payple

Supply Ability : 100000 pieces per year

Delivery Time : 45 - 55 work days

Packaging Details : Standard export package

Type : Brakes

Brand : HANJIU

Model No. : BK2

Torque : up to 620 Nm

Flange : SAE A flange

Application : SAE A flange motor

Contact Now


Danfoss Brakes SB 930 Series equivalent can be assembled with an SAE A flange motor input


Quick details:
This is a hydraulic brakes, that compatible Danfoss SB 930 brakes on form, fit and function. Danfoss dealers and users sell and use it directy as compatible brakes as SB 930. As a multi-wet-disc brake with SAE A flange that can be used as a stand-alone brake or can be assembled with an SAE A flange motor input. With five holding torque options up to 620 Nm (5500 lb-in), the SB brake offers flexibility for a variety of machine applications. Internal components are immersed if fluid and are environmentally sealed to prevent contamination and corrosion while maintaining rated holding capacity.

Model Cross over
Danfoss SB 930 = Hanjiu BK2

Technical information:
BRAKE FOR OMP/OMR 32 DAN/M

Quantity horizontal oil: 0.05 litre.
Quantity vertical oil: 0.1 litre.
Viscosity: ISO VG32.
Static torque: 32 da Nm.
Minimum opening pressure: 16 bar.
Maximum pressure: 300 bar.
Oil capacity for opening 3 to 4 cm3.

In order to make the BK2 series brake work under the best situation, we recommend the normal requirements as follows:

Assembly: we have to mount the brake BK2 with hydraulic motor, and then fill the brake with lubrication oil through the drain port, and then mount with other parts.
Fluid type: Mineral based-HM(GB/T763.2-87) (ISO6743/4) or HLP(DIN51524).
Temperature range: normal -20℃-90℃the best optimal situation 20℃-60℃.
Viscosity range: 20~75mm2/s; the best optimal situation 42~74mm2/s at 40℃
Filtration: nominal filtration of 25 micron, ISO code 20/16
Maintenance: changed after the first 50~100h;then after every 500~1000h.

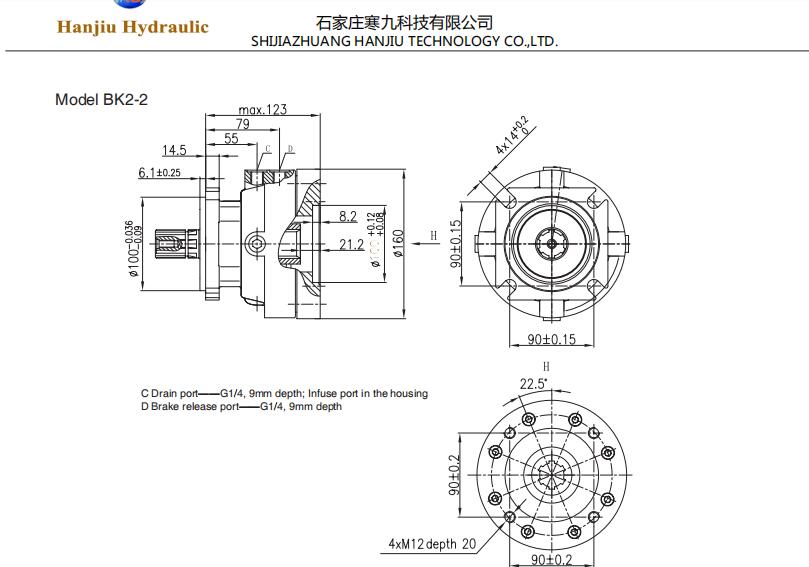

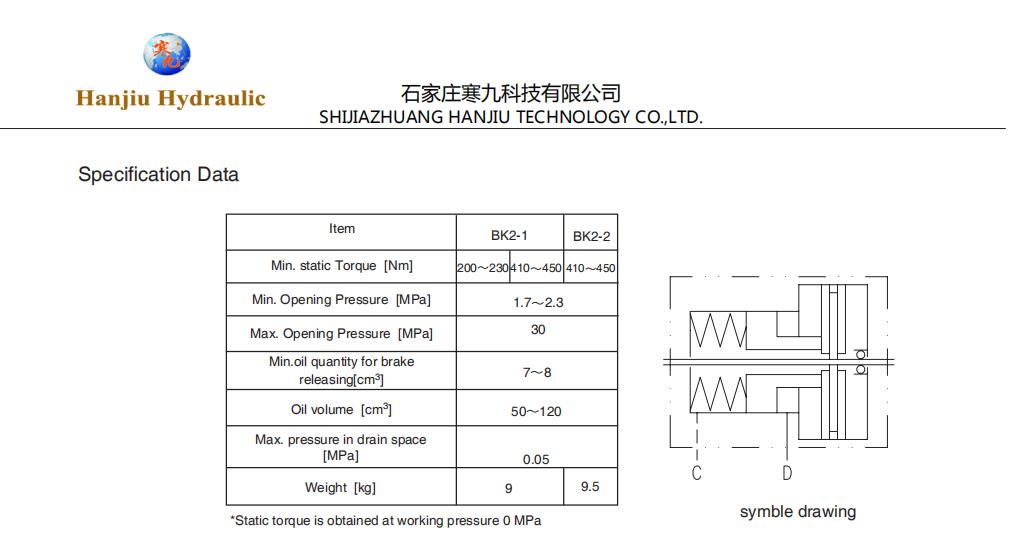

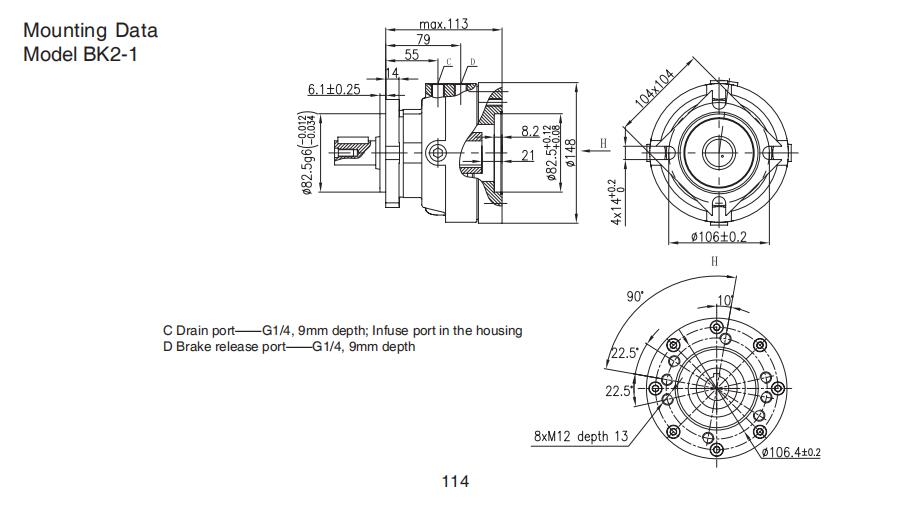

BK2, 2 type available

Item BK2-1 BK2-2
Min. static torque Nm 200 - 230 410-450
Min. opening pressure MPa 1.7～2.3
Max. opening pressure MPa 30
Min. oil quantity for brake releasing cm3 7～8
Oil volume cm3 50～120
Max. pressure in drain space MPa 0.05
Weight kg 9 9.5


Contact us to talk about your needs, we will meet your reuqest with most suitable offer
