Omr 160 Orbit Hydraulic Motor With Speed Sensor And With 2 Meter Cable

Name: Omr 160 Orbit Hydraulic Motor With Speed Sensor And With 2 Meter Cable
Brand: HANJIU
Price: 1 USD

Quality Omr 160 Orbit Hydraulic Motor With Speed Sensor And With 2 Meter Cable wholesale

Brand Name : HANJIU

Model Number : OMR 160

Certification : CE

Place of Origin : China

MOQ : 100 Pieces

Price : Contact the seller to get a quote

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 10000 pieces per year

Delivery Time : 55 work days

Packaging Details : Box, Pallet

Item : Orbital

OEM # : OMR 160

Manufacturer : Hanjiu

Displacement : 160 ml/r

Mounting flange : 4-hole

Shaft type : key shaft

Contact Now

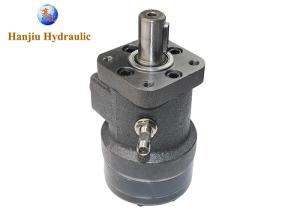

OMR 160 Hydraulic motor with Speed Sensor and with 2 meter cable

Hanjiu produce variety of hydraulic parts to suit range of brands & applications. We can vast your business.

We introduce us as advantage supplement of your current hydraulic supply, solve reliability, quality, time, cost, brand promotion.

This motors is Compatible with OMR DANFOSS MEDIUM-SPEED MOTOR

- Displacement: 160cc

- Flange: 4-hole

- Shaft: Ø25mm, cylindrical

- Ports: 1/2" BSP (inlet and outlet) 1/4" BSP (drain)

- PNP speed of rotation sensor (35 impulsion per rev)

- Genuine Danfoss reference: OMR 160

Small Frame Low Speed, High Torque Motor
Manufacturer: Hanjiu

Details specifications

Main Specifications:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1085	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1220	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	360	360	390	390	365
	int.	83	126	220	280	340	430	440	490	535	495
	peak	105	165	270	320	370	460	560	640	650	680
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	10	7	6	5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	9.5	9	8
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	16.5	13	11	9	7
	int.	16.5	17.5	20	20	20	20	17.5	15	13	10
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	20	17.5	15
Max. flow (L/min)	cont.	40	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	45	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

Technical data for BMR with 31.75 and 32 shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1250	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1520	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	380	450	540	550	580
	int.	83	126	220	280	340	430	500	610	690	690
	peak	105	165	270	320	370	460	560	710	840	830
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	11	10	9	7.5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	12	10	9
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	17.5	17.5	17.5	13.5	11.5
	int.	16.5	17.5	20	20	20	20	20	20	17.5	15
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	21	17.5
Max. flow (L/min)	cont.	45	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	55	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.

OMM, OMP, OMR, OMH, OMS, OMT, OMV are available.
