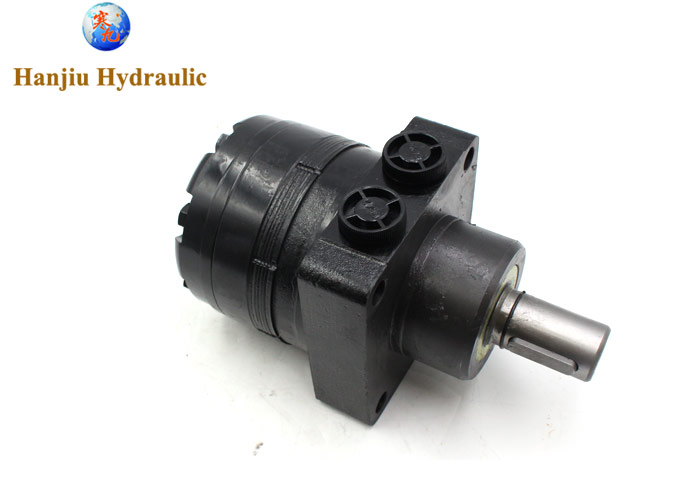

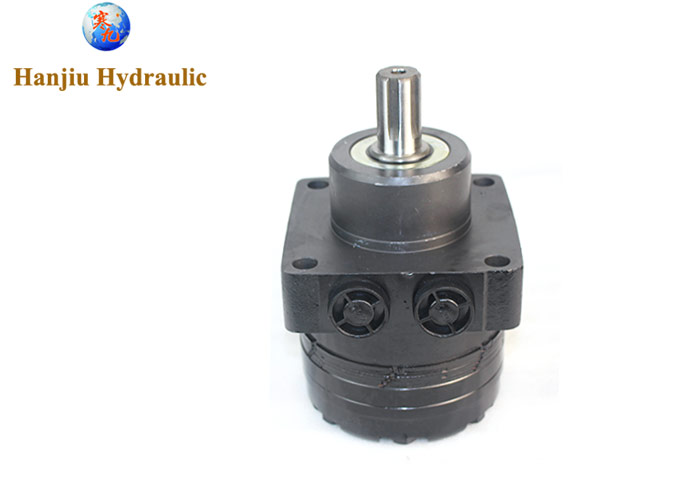

10.3"LSHT Torqmotors and Nichols Parker TG0170US010AAAA
1"6B Spline
Details specifications
| Series: | TG |
| Shaft: | 1" 6B SPLINE |
| Rotation: | Standard |
| Displacement (cm3/rev): | 0170 |
| Mounting: | WHEEL 4 Bolt |
| Ports: | G1/2 |
| Geometric Displacement: | 160 cm3/rev (10.3 in3/rev) |
| Maximum Speed: | 441rev/min |
| Maximum Oil Flow (continuous / intermittent): | 45 lpm (12 gpm) / 57 lpm (15 gpm) |
| Max. Differential Pressure (continuous / intermittent): | 140 bar (2030 PSID) / 190 bar (2750 PSID) |
| Maximum Supply Pressure: | 200 bar (2900 PSID) |
| Maximum Torque - Continuous / Intermittent: | 245 Nm / 335 Nm |
| Maximum Performance: | 14.1 KW (23.4 HP) |
| Minimum Starting Torque - Continuous / Intermittent: | 245 Nm / 335Nm (3637 lb in) |
More Parker type Torque motors:
TB, TC, TJ, TE, TF, TG, TK
If you want to buy an Parker motors, but don't trust the manufacturer, my suggestion is that you can go to Hanjiu Technology to buy it. This recommendation is not without reason. Since 2010, Hanjiu Technology has become the first factory in northern China to produce and export hydraulic cycloid motors and steering gears, with an annual output of more than 900,000 PCS. Years of production and R&D experience, over the years their products have been sold all over the world and have been widely praised. Good reputation cannot be achieved by marketing. Only by making products and serving customers attentively can we win the trust of customers, and this is exactly the same as Hanjiu Technology has been practicing the "quality first, service first" company's business philosophy coincides with it, this is a trustworthy company.
When you buy an omt motor from Hanjiu, what should you pay attention to when using the machine? First of all, after getting the motor, don't rush to use it, you need to do a few things:
(1) Check whether the oil level of the oil pool meets the specified standards, if not, replenish oil in time.
(2) Check whether the button is flexible and whether it is blocked.
(3) Check whether the ground wire of the motor is loose or damaged. If it is loose, it should be tightened. If it falls off or is damaged, the maintenance personnel should be notified.
(4) Check whether the safety protection device is complete and reliable.
(5) Check whether each handle is flexible.
(6) Tighten the loose nuts.
During use, you need to start the hydraulic pump of the gantry hydraulic press, check whether the hydraulic pump works well, whether the sealing parts and pipelines are blocked or leaking; check whether the limit switch works well and whether the positioning of the bumper is normal; pay attention to each operation at any time. Whether the temperature rise of the components and the sound are normal.
After use, check and clean all active parts, and finally put each control handle (switch) in neutral (zero position). Don't be afraid of trouble, reasonable use can save you a lot of things later.
