Brand Name : HANJIU
Model Number : 2p80
Certification : CE
Place of Origin : CHINA
MOQ : 30 Sets
Price : Negotiable
Payment Terms : L/C, T/T
Supply Ability : 300000 sets per year
Delivery Time : 10-15 work days
Packaging Details : Carton Packing and finally with a Tray, or Wooden Box
Model No. : 2P80
Warranty : 12-18 months
Spool : 1, 2, 3, 4, 5, 6, ...
Flow : 80liters
Spool function : O/Y/A
oil ports : BSP port,SAE ports

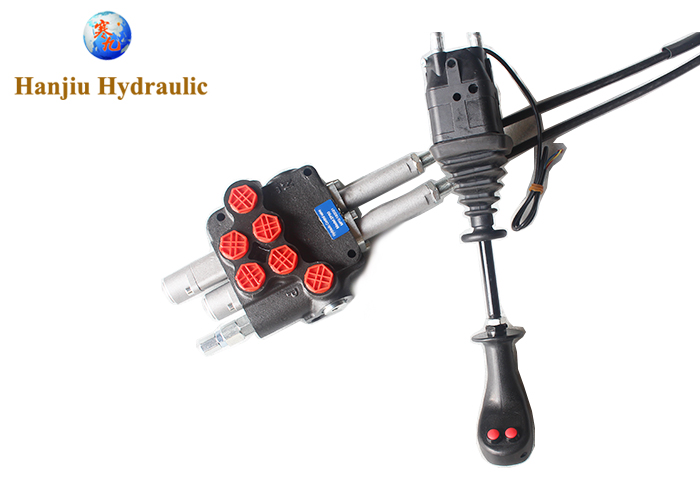

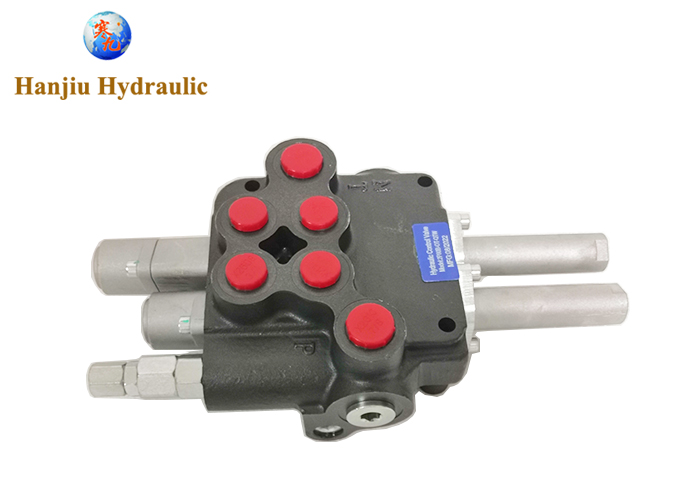

2 Levers Hydraulic Directional Control Valve 23GPM air manual flow rate control valve
P80 series valves with middle-high pressure monoblock construction is developed based on Europe
technology,can be used on tractors, manual control with pneumatic controls
Ambient temperature | -40C...+60C |
Viscosity | 12 ...800 mm2/s |
Fluid temperature | -15C...+80C |
Filtration | 10 to NAS 1638 |
Max operating pressure | 250bar |
Back pressure | 50 bar |
Nominal flow | 80 l/min |
Leakage(A,B-T) | 15cm3/min at 120bar |
Spool stroke | 6 mm |
Actuating force | < 200 N |
Modification/ Spools | 2spools |
How to choose monoblock valves?
P XX-X-X-X-XXX-XXX...-X-X
① ② ③ ④ ⑤⑥⑦ ⑤⑥⑦ ⑧ ⑨
① flow:40,80
② number of sections:1-8
③ relief valve set pressure:100-250bar
④ inlet port size: see table(1)
⑤ control type see table(2)
⑥spool type
⑦spool returing type
⑧work port size see table(1)
⑨outlet port size see table(1)
![]() |
