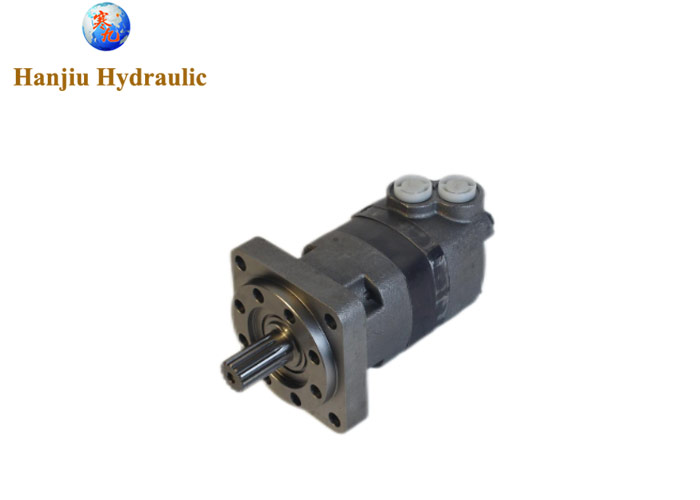

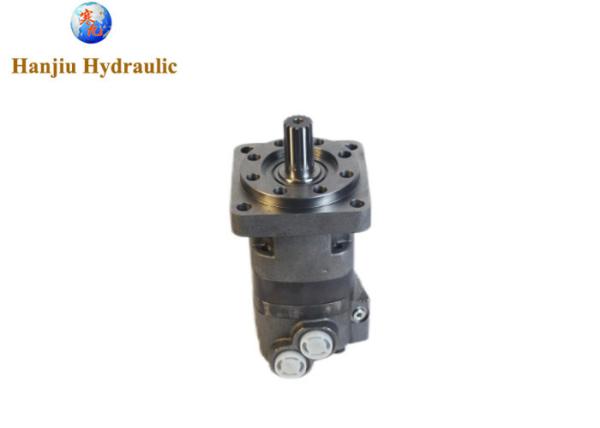

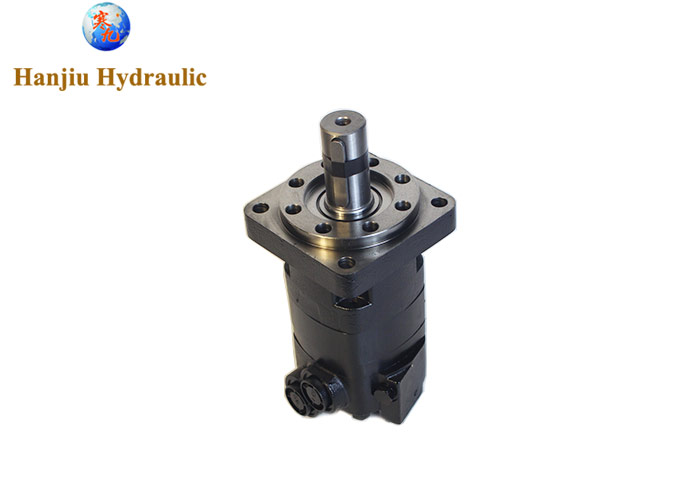

Aftermarket Gerotor Hydraulic Motor Charlynn 4k 109-1450-006 Disc Valve

Name: Aftermarket Gerotor Hydraulic Motor Charlynn 4k 1091450006 Disc Valve
Brand: HANJIU
Price: 1 USD

Quality Aftermarket Gerotor Hydraulic Motor Charlynn 4k 109-1450-006 Disc Valve wholesale

Brand Name : HANJIU

Model Number : 4000 series

Certification : ISO 2015:9001

Place of Origin : CHINA

MOQ : 1 Sets

Price : Start from 500 usd

Payment Terms : L/C, T/T, Western Union, Western Union

Supply Ability : 300000 sets per year

Delivery Time : 15 - 45 work days

Packaging Details : Carton, Box, Pallets

Item : Disc Geroler motors

Model : 4000 series

Direction of rotation : Reversible

flange : 4 Bolts standard type

shaft : 1 1/4 spline shaft

charlynn code : 109-1450-aft

Contact Now

New aftermarket Gerotor hydraulic motor charlynn 4k 109-1450-006 Disc Valve Hydraulic Motors

Disc Motor
Geroler
Disc Valve
3/4 Split Flange Port
15.03 Cubic Inch Displacement Per Rev

Product details:

MOTOR TYPE	Disc Valve
MOUNT TYPE	4 Bolt
DISPLACEMENT (IN3/REV)	15.03
MOUNTING HOLE SIZE	0.562 in
PORT SIZE	3/4 unf
PAINT/PACKAGING	Individual Box
SHAFT SIZE & TYPE	Splined
RPM [MAX]	383 rpm
SERIES	4000 Series
MOTOR ELEMENT	Geroler
PILOT DIAMETER	5 in
DRAIN	0.4375-20 UNF-2B SAE O-Ring Port With Check Valve
BOLT CIRCLE DIA.	6 3/8 in
GEROTER/GEROLER OPTIONS	Standard
MATERIAL	Cast Iron
OUTPUT TORQUE AT RATED PSI (INCH/POUNDS)	6240 in lb
PORT TYPE	Split Flange
FLOW RATE	25 gal/min
WEIGHT	46.16 LB

Aftermarket Gerotor Hydraulic Motor Charlynn 4k 109-1450-006 Disc Valve
