antirust Lsht Hydraulic Motor Npt Ports - Bmrs-200-H2-K-P for Lifting equipment

Brand Name : Hanjiu

Model Number : BMRS Hydraulic motor

Certification : CE,ISO9001

Place of Origin : China

MOQ : 50 units

Price : Negotiable

Payment Terms : T/T, Western Union,Paypal .

Supply Ability : 100,000 units / Year

Delivery Time : 10-15 working days

Packaging Details : Carton packing , with a tray or wooden box if needed .

Product name : Hydraulic orbital Motors

Displacement : 200CC

Applications : Agricultural machine, Lifting equipment

Replacement : Hanjiu BMRS = DS, Eaton S,T series , M+S MR etc

Oil temperature : normal-35℃-80℃

shaft : cylindrical shaft φ25.4mm,woodruff key

Contact Now

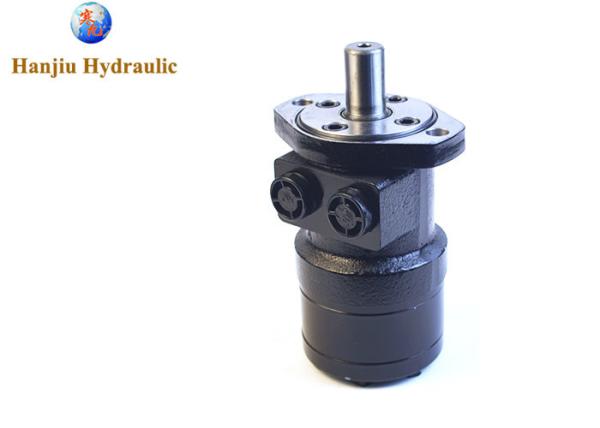

LSHT HYDRAULIC MOTOR - 11.87 IN³/REV - SAE "A" 2-BOLT - 1" WOODRUFF - NPT PORTS - BMRS-200-H2-K-P

Features:

  • Shaft: 1" Woodruff Key
  • Flange: SAE "A" 2-Bolt Mount
  • Ports: 1/2" NPTF
  • Drain: 7/16 - 20 SAE
  • Corrosion-resistant Black Paint

Technical Specifications for BMRS-200 H2-K-P:

  • Displacement: 11.87 in³/rev (194.5 cm³/rev)
  • Max Speed: 310 rpm (cont) / 385 rpm (int)
  • Max Torque: 3186 in•lbf (cont) / 3894 in•lbf (int)
  • Max Differential: 1885 psi (cont) / 2538 psi (int)
  • Max Flow: 15.85 gpm (cont) / 19.81 gpm (int)

Drop-In Replacement for:

  • Char-Lynn 103-1029


Main Specifications:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type BMR
BMRS
36		 BMR
BMRS
50		 BMR
BMRS
80		 BMR
BMRS
100		 BMR
BMRS
125		 BMR
BMRS
160		 BMR
BMRS
200		 BMR
BMRS
250		 BMR
BMRS
315		 BMR
BMRS
375
Geometric displacement (cm3 /rev.) 36 51.7 81.5 102 127.2 157.2 194.5 253.3 317.5 381.4
Max. speed (rpm) cont. 1085 960 750 600 475 378 310 240 190 155
int. 1220 1150 940 750 600 475 385 300 240 190
Max. torque (N·m) cont. 72 100 195 240 300 360 360 390 390 365
int. 83 126 220 280 340 430 440 490 535 495
peak 105 165 270 320 370 460 560 640 650 680
Max. output (kW) cont. 8.5 9.5 12.5 13 12.5 12.5 10 7 6 5
int. 9.8 11.2 15 15 14.5 14 13 9.5 9 8
Max. pressure drop (MPa) cont. 14 14 17.5 17.5 17.5 16.5 13 11 9 7
int. 16.5 17.5 20 20 20 20 17.5 15 13 10
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 20 17.5 15
Max. flow (L/min) cont. 40 50 60 60 60 60 60 60 60 60
int. 45 60 75 75 75 75 75 75 75 75
Weight (kg) 6.5 6.7 6.9 7 7.3 7.6 8 8.5 9 9.5


antirust Lsht Hydraulic Motor Npt Ports - Bmrs-200-H2-K-P for Lifting equipmentantirust Lsht Hydraulic Motor Npt Ports - Bmrs-200-H2-K-P for Lifting equipment

antirust Lsht Hydraulic Motor Npt Ports - Bmrs-200-H2-K-P for Lifting equipment

If you have an existing hydraulic system and need a hydraulic motor, Hanjiu Technology's hydraulic orbital motor is an ideal product. Hanjiu Hydraulics regards honest service and product quality as the lifeline of the enterprise. We sell well at home and abroad, the markets include Southeast Asia, the Middle East, South America, North America, Northern Europe, Africa, India and other countries and regions. We are happy to be your hydraulic products partner, try us once, you will not regret it
