Brand Name : HANJIU
Model Number : TE MOTOR
Certification : CE
Place of Origin : China
MOQ : 100 Pieces
Price : Contact the seller to get a quote
Payment Terms : L/C, D/A, D/P, T/T, Western Union
Supply Ability : 10000 pieces per year
Delivery Time : 55 work days
Packaging Details : Box, Pallet
Item : orbital motor
OEM # : BME2
Manufacturer : Hanjiu
Displacement : 315 ml/r
Mounting flange : wheel mounting flange
Shaft type : 25.4mm cone shaft
Quick review:
This is PARKER TE compatible motor with same form, fit and function
Apply to lown mower and tractor mowers,loader mower
Model type PARKER TE = Hanjiu BME2 motors
Series: | BME2 motors |
Shaft: | 1" Tapered shaft |
Rotation: | Standard rotation |
Displacement (cm3/rev): | 0315 |
Mounting: | Wheel mounting |
Geometric Displacement: | 315cm3/rev |
Maximum Oil Flow (continuous / intermittent): | 57 lpm / 75lpm |
Max. Differential Pressure (continuous / intermittent): | 90 bar / 125bar |
Maximum Supply Pressure: | 160 bar |
Maximum Torque - Continuous / Intermittent: | 439 Nm / 613Nm |
Maximum Output(continuous / intermittent) | 7.6 KW /14kw |
Type | BME2 65 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | |
80 | 100 | 125 | 160 | 200 | 230 | 250 | 295 | 315 | 375 | |||
Geometric displacement | 66.8 | 81.3 | 101.6 | 127 | 157.2 | 193.6 | 226 | 257 | 287.8 | 314.5 | 370 | |
(cm3 /rev.) | ||||||||||||
Max. speed (rpm) | cont. | 667 | 543 | 439 | 350 | 283 | 229 | 247 | 216 | 196 | 178 | 152 |
int. | 842 | 689 | 553 | 441 | 355 | 289 | 328 | 287 | 254 | 235 | 199 | |
Max. torque (N*m) | cont. | 126 | 157 | 191 | 245 | 307 | 382 | 378 | 381 | 393 | 448 | 439 |
int. | 176 | 215 | 268 | 335 | 422 | 520 | 528 | 543 | 547 | 587 | 613 | |
Max. output (kW) | cont. | 8.3 | 8.8 | 7.9 | 8.9 | 8.9 | 9 | 9.9 | 9.3 | 8.7 | 8 | 7.6 |
int. | 13.9 | 14.4 | 13.5 | 14.1 | 15.6 | 15.7 | 17.9 | 16.5 | 15.6 | 14.3 | 14 | |
Max. pressure drop (MPa) | cont. | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 11 | 10 | 10 | 9 |
int. | 19 | 19 | 19 | 19 | 19 | 19 | 16.5 | 15.5 | 14.5 | 13.5 | 12.5 | |
peak | 20 | 20 | 20 | 20 | 20 | 20 | 18 | 18 | 17 | 16 | 16 | |
Max. flow (L/min) | cont. | 45 | 45 | 45 | 45 | 45 | 45 | 57 | 57 | 57 | 57 | 57 |
int. | 57 | 57 | 57 | 57 | 57 | 57 | 75 | 75 | 75 | 75 | 75 |
![]() |

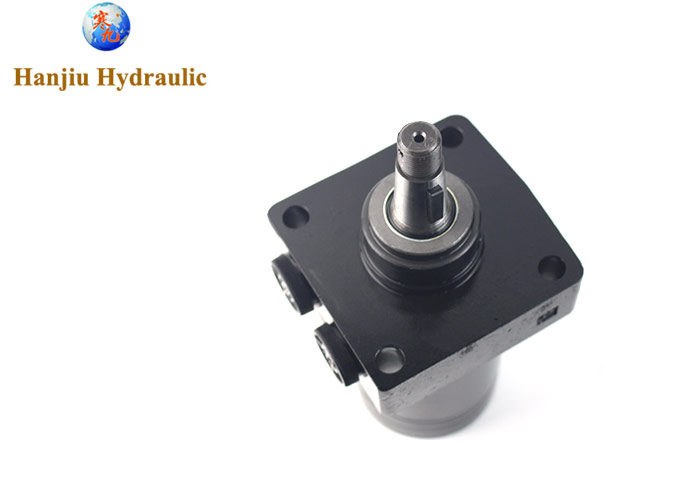

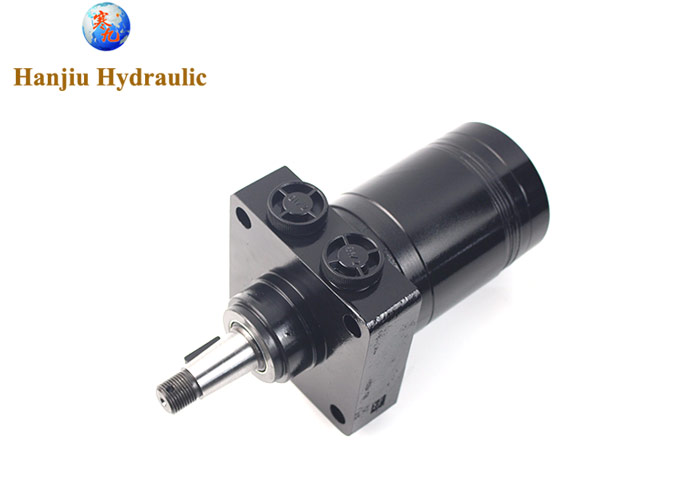

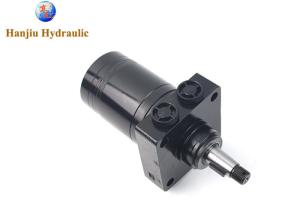

TE Series Parker Wheel Motor 315cc 25.4mm Tappered Shaft Bspp Ports Images |
