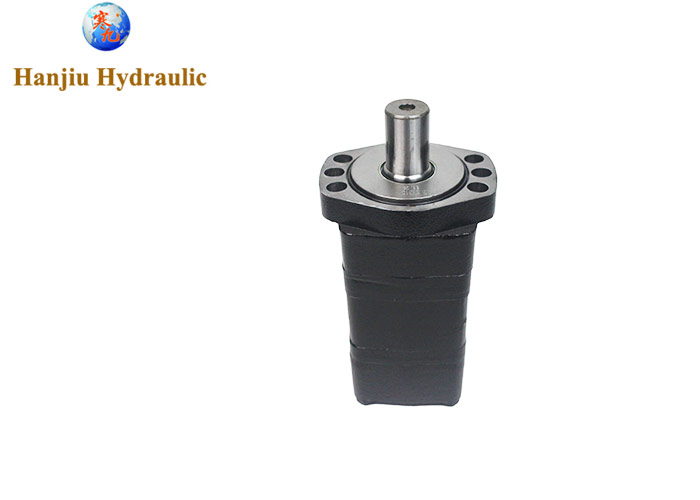

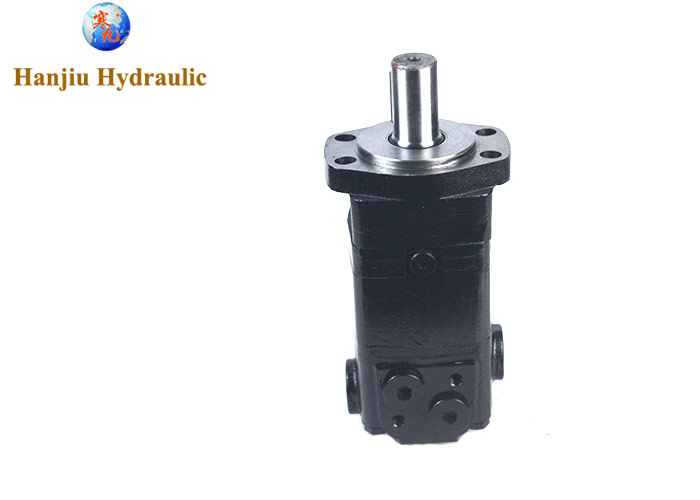

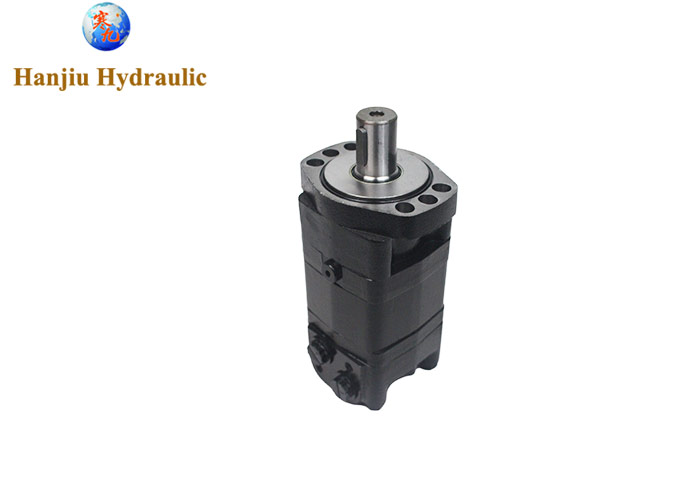

hydraulic orbit motor BMSY series BMSY-315-F6-G-S, 25mm key shaft,Magneto Mount (6 Holes)
Details as below:
type code :BMSY-315-F6-G-S
- Port Size:side ports, 2x7/8-14 UNF, O-ring, 7/16-20 UNF
- flange: 6 holes mageneto flange
- displacement:315cc
- Shaft:25mm straight key shaft
- Port Location:site port
- Flow Rating :75l/min
- Max Speed:cont.240rpm,int.280 rpm
- Shaft seal:High pressure seal Kit
- function:low leakage
- Country of Manufacture China
Main Specifications:
| Type | BMSY
80 | BMSY
100 | BMSY
125 | BMSY
160 | BMSY
200 | BMSY
250 | BMSY
315 | BMSY
400 | BMSY
475 |
Geometric displacement
(cm3 /rev.) | 80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 394 | 475 |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 185 | 155 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 225 | 185 |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 880 | 910 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 980 | 990 |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | 760 |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11 | 9 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 12 | 11 |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 16 | 14 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 19 | 15 |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 21 | 17.5 |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | 14.3 |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
Applications of Hydraulic Motor Torque
Hydraulic motor torque plays a vital role in various applications, including
1. Construction machinery Hydraulic motors are commonly used in excavators, bulldozers, and cranes. The torque output determines the digging, lifting, and pushing capacities of these machines.
2. Industrial machinery Hydraulic motors are utilized in conveyor systems, winches, and machine tools. The torque output determines the speed and power of these machines.
3. Marine industry Hydraulic motors power various marine equipment, including winches, steering systems, and propulsion systems. Torque is crucial for maneuvering and propelling boats and ships.
4. Agricultural machinery Hydraulic motors are employed in tractors, harvesters, and irrigation systems. The torque output determines the efficiency of these machines in performing agricultural tasks.
Conclusion
Hydraulic motor torque is a critical parameter that determines the performance and capabilities of hydraulic motors in various applications. Understanding the factors affecting torque output can help in selecting the appropriate motor for specific tasks. Whether in construction, industry, marine, or agriculture, hydraulic motors with optimal torque enable efficient and powerful operations.
HANJIU hydraulic motor expert, rich specifications, rapid manufacturing, reasonable price, perfect service, looking forward to your consultation
