Brand Name : HANJIU
Model Number : BMV
Certification : CE
Place of Origin : CHINA
MOQ : 50 Sets
Price : Negotiable
Payment Terms : L/C, T/T
Supply Ability : 1000000 sets per year
Delivery Time : 10-15 work days
Packaging Details : Carton Packing and finally with a Tray, or Wooden Box
Products Name : Hydraulic Orbital Motor
Shaft : 50mm
Oil Port : G1
Drain Port : G1/4"
Warranty : 12-18 months
Application : Heavy equipments, Construction machines, etc.
Hydraulic Drive Motor BMV630 / OMV630 , φ50mm Shaft For Construction Equipments
Introduction:
BMV series motor adapt the advanced Gerotor gear set, design with disc distribution flow and high pressure. The unit can be supplied theindividual variant in operating multifunction in accordance with requirement of applications.
Characteristic Features:
(1) Advanced manufacturing devices for the Gerotor gear set, which use low pressure of start-up, provide smooth and reliable operationand high efficiency;
(2) The output shaft adapts in tapered roller bearings that permit high axial and radial forces. Can offer capacities of high pressure and hightorque in the wide of applications;
(3) Advanced design in disc distrbution flow, which can automatically compensate in operating with high volume efficiency and long life,provide smooth and reliable operation.
Specifications:
Hanjiu BMV Orbital Motors can replace OMV, Eaton-charlynn 10000 series, M+S MV etc.
Displacement can be: 315cc, 400cc, 500cc, 630cc, 800cc, 1000cc
Torque can be: 900-2000N/m
Shaft: ¢50mm;
Pilot: ¢160mm;
Flange:4 Bolts/200mm
Port: G1, Drain Port:G1/4”
Note: When the table is used, please fill the code in the table and give us the complete order code you need. The code information consists of construction, displacement, mounting flange, output shaft and ports . For more details about Performance data, Dimensions & mounting data, Shaft extensions, etc., please download our catalogue at here. |
Main Specifications: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
* Continuous pressure :Max. value of operating motor continuously. |
Applications:
Hanjiu Hydraulic motors are widely applied in agriculture machinery, fishing machinery, plastic industry, mining, and construction machinery, especially fitted to lower load applications, such as plastic injection mold machine, cleaner, grass cutter,Winches, Conveyors, Slews, Sweeper Drives, Augers, Cutters, Mowers and Chippers.
![]() |

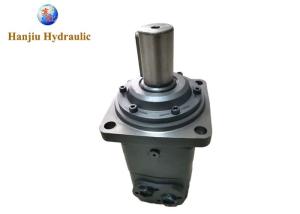

Construction Equipment Hydraulic Wheel Drive Motors BMV 630 / OMV 630 φ50mm Shaft Images |
