High Pressure Oil Seal Hydraulic Drive Motor BMP / BMR / BMS For Agriculture Equipment

Product Categories
Shijiazhuang Hanjiu Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

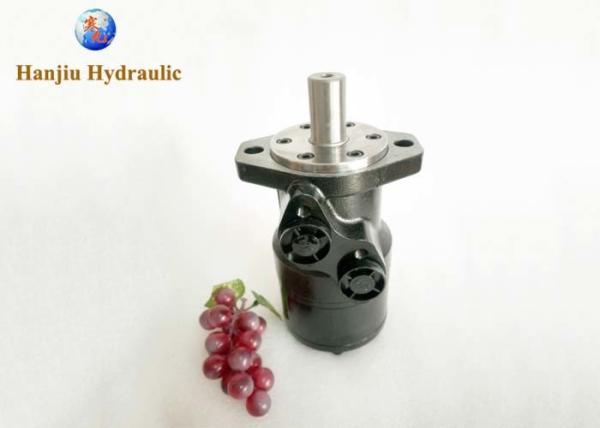

High Pressure Oil Seal Hydraulic Drive Motor BMP / BMR / BMS For Agriculture Equipment

Brand Name : HANJIU

Model Number : BMP / BMR / BMS Series

Certification : CE

Place of Origin : China

MOQ : 10 Pieces

Price : Negotiable

Supply Ability : 90000 Pieces One Year

Packaging Details : Carton Box

Product Name : Hydraulic Drive Motor BMP / BMR / BMS

Features : High pressure oil seal

Displacement : 50cc - 500cc

Application : Agriculture Forestry Equipment

Contact Now

Hydraulic Drive Motor BMP / BMR / BMS Agriculture Forestry Hydraulic Equipment

► Characteristic Features

1. BMP / BMR / BMS Hydraulic Motors widely used for agriculture and forestry equipment.

2. Same than OMP / OMR / OMS Motors.

3. Orbital motor for more difficult working conditions in various applications.

4. Shaft with taper roller bearings ensures high static and dynamic bearing capacity.

► Specification

HANJIU
HYDRAULIC		 M+S
HYDRAULIC		 EATON
CHAR LYNN		 ROSS
TRW		 WHITE
CROSS		 PARKER SAM
BREVINI		 BOSCH
RECROTH
BMM MM MLHK J SERIES OMM BGM MGX
BMP MP HP H SERIES OMP DH MF MG WP RS TC TE TB BG MGP GXP
BMR MR HR MLHRW,RW S,T SERIES W SERIES OMR DS OMEW MB WR RE TF BR MGR GMR
BMH MH MLHH HW HWF OMH ME RE TG
BMS MS MSY MLHS 2000 SERIES OMS ME RE TG HPR MGS GMS
BMT MT MLHT MTM 6000 SERIES OMT TMT MJ HT MGT,GMT
BMV MV MLHV 10000 SERIES OMV MGV G

BMP / OMP Motors

Type BMP
36		 BMP
50		 BMP
80		 BMP
100		 BMP
125		 BMP
160		 BMP
200		 BMP
250		 BMP
315		 BMP
400		 BMP
500
Geometric displacement (cm3 /rev.) 36 51.7 77.7 96.2 120.2 157.2 194.5 240.3 314.5 389.5 486.5
Max. speed (rpm) cont. 1500 1150 770 615 490 383 310 250 192 155 120
int. 1650 1450 960 770 615 475 385 310 240 190 150
Max. torque (N·m) cont. 55 100 146 182 236 302 360 380 375 360 385
int. 76 128 186 227 290 370 440 460 555 525 560
peak 96 148 218 264 360 434 540 550 650 680 680
Max. output (kW) cont. 8 10 10 11 10 10 10 8.5 7 6 5
int. 11.5 12 12 13 12 12 12 10.5 8.5 7 6
Max. pressure drop (MPa) cont. 12.5 14 14 14 14 14 14 11 9 7 6
int. 16.5 17.5 17.5 17.5 17.5 17.5 17.5 14 14 10.5 9
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 18 16 14 12
Max. flow (L/min) cont. 55 60 60 60 60 60 60 60 60 60 60
int. 60 75 75 75 75 75 75 75 75 75 75
Weight (kg) 5.6 5.6 5.7 5.9 6 6.2 6.4 7 6.9 7.4 8

BMR / OMR Motors

Type BMR
36		 BMR
50		 BMR
80		 BMR
100		 BMR
125		 BMR
160		 BMR
200		 BMR
250		 BMR
315		 BMR
375
Geometric displacement (cm3 /rev.) 36 51.7 81.5 102 127.2 157.2 194.5 253.3 317.5 381.4
Max. speed (rpm) cont. 1085 960 750 600 475 378 310 240 190 155
int. 1220 1150 940 750 600 475 385 300 240 190
Max. torque (N·m) cont. 72 100 195 240 300 360 360 390 390 365
int. 83 126 220 280 340 430 440 490 535 495
peak 105 165 270 320 370 460 560 640 650 680
Max. output (kW) cont. 8.5 9.5 12.5 13 12.5 12.5 10 7 6 5
int. 9.8 11.2 15 15 14.5 14 13 9.5 9 8
Max. pressure drop (MPa) cont. 14 14 17.5 17.5 17.5 16.5 13 11 9 7
int. 16.5 17.5 20 20 20 20 17.5 15 13 10
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 20 17.5 15
Max. flow (L/min) cont. 40 50 60 60 60 60 60 60 60 60
int. 45 60 75 75 75 75 75 75 75 75
Weight (kg) 6.5 6.7 6.9 7 7.3 7.6 8 8.5 9 9.5

BMS / OMS Motors

Type BMS
80		 BMS
100		 BMS
125		 BMS
160		 BMS
200		 BMS
250		 BMS
315		 BMS
375
Geometric displacement
(cm3 /rev.)		 80.6 100.8 125 157.2 200 252 314.5 370
Max. speed (rpm) cont. 800 748 600 470 375 300 240 200
int. 988 900 720 560 450 360 280 240
Max. torque (N·m) cont. 190 240 310 316 400 450 560 536
int. 240 300 370 430 466 540 658 645
peak 260 320 400 472 650 690 740 751
Max. output (kW) cont. 15.9 18.8 19.5 15.6 15.7 14.1 14.1 11.8
int. 20.1 23.5 23.2 21.2 18.3 17 18.9 17
Max. pressure drop (MPa) cont. 17.5 17.5 17.5 15 14 12.5 12 10
int. 21 21 21 21 16 16 14 12
peak 22.5 22.5 22.5 22.5 22.5 20 18.5 14
Max. flow (L/min) cont. 65 75 75 75 75 75 75 75
int. 80 90 90 90 90 90 90 90
Max. inlet pressure (MPa) cont. 25 25 25 25 25 25 25 25
int. 30 30 30 30 30 30 30 30
Weight (kg) 9.8 10 10.3 10.7 11.1 11.6 12.3 12.6

► Application

Hydraulic Drive Motor BMP / BMR / BMS For Agriculture Forestry Equipment

1. Orchard Sweeper.

2. Garden pruning and shaping trees.

3. Sugar Beet Harvester

4. Hydraulic Wood Splitter

5. Hydraulic Rotating

6. Feeder Mixer

7. Seeding and Planting

8. Attachments and Towed Equipment
