Medium Speed Orbit Hydraulic Motor BMRW 160cc With 35 Mm Tapered Shaft

Medium Speed Orbit Hydraulic Motor BMRW 160cc with 35 mm tapered shaft

• Output volume (cc/rev): 160
• Shaft: Konuswelle 35mm
• max r.p.m.: 375
• Torque max. (Nm): 380
• Power max. (kW): 12,5
• Inlet pressure (bar): 175
• Pressure difference (bar): 175
• Volume flow max. (l/min): 60
• Shaft seal version: Standard
• Engine version: with non-return valves
• Connection: G 1/2"
• Leakage oil connection: G 1/4"

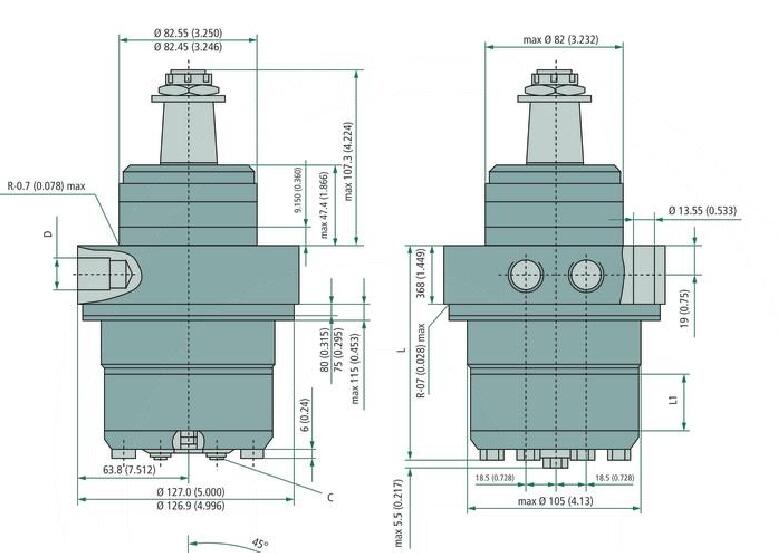

• L (mm): 125,8
• L1 (mm): 27,8

Characteristics

• Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up, provide smooth and reliable operation and high efficiency.
• The output shaft adapts in needle roller bearings that permit high axial and radial forces. The can offers capacities of high pressure and high torque in the wide of applications.
• Advanced design in high speed distribution flow, which can automatically compensate in operating with high volume efficiency and long life , provide smooth and reliable operation.
• Lowest leakage rate, most accurate timing methods.Commutator rotates 6x faster than shaft speed. It make the distribution in a high precision reduces life-cycle cost, maintain high volume efficiencies and can run very smoothly at low speed, gear box not required.

orbital hydraulic motor

cycloid hydraulic motor

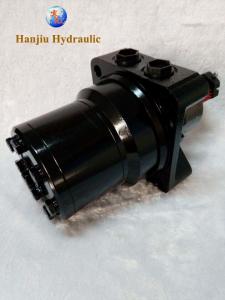

Medium Speed Orbit Hydraulic Motor BMRW 160cc With 35 Mm Tapered Shaft Images
