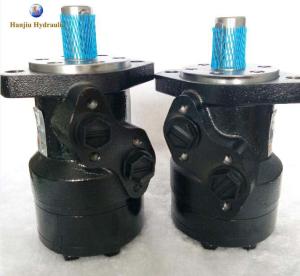

Industrial Low Speed High Torque Hydraulic Motor BMR 200 25MM A2 1 / 2 SP HS

Name: Industrial Low Speed High Torque Hydraulic Motor BMR 200 25MM A2 1 2 SP HS
Brand: HANJIU
Price: 1 USD

Quality Industrial Low Speed High Torque Hydraulic Motor BMR 200 25MM A2 1 / 2 SP HS wholesale

Brand Name : HANJIU

Model Number : BMR

Certification : CE

Place of Origin : China

MOQ : 50 Pieces

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Payple

Supply Ability : 70000 pieces per year

Delivery Time : 10 - 15 work days

Packaging Details : 1 pc/ inner carton, 3 pcs/ outer carton, 27x40x14cm, transport with wooden pallet, 1500 pcs/ 20GP, 3000 pcs/ 40GP

Type : BMR LSHT Motor

Brand : HANJIU

Model No. : BMR315

Power : Hydraulic Oil

Displacement : 50ml/r, 80ml/r, 100ml/r, 125ml/r, 160ml/r, 200ml/r, 250ml/r, 315ml/r, 400ml/r, 500ml/r

Weight : 9.5 kgs

Feature : Replace OMR, M+S MR, EATON S series

Application : Plastic, Agricultural, Forestry, Industrial, etc.

Contact Now

Low Speed High Torque Hydraulic Motor BMR 200 25MM A2 1 / 2 SP HS

Introduction:
A hydraulic motor is an actuator of a hydraulic system that converts hydraulic pressure energy supplied by a hydraulic pump into the mechanical energy (torque and speed) of its output shaft. Liquid is the medium that transmits force and movement.

Hydraulic motors, also known as oil motors, are mainly used in injection molding machinery, ships, hoists, construction machinery, construction machinery, coal mining machinery, mining machinery, metallurgical machinery, shipbuilding machinery, petrochemicals, and port machinery.

- Displacement: 200cc

- Flange: 2-hole, SAE-A, distance 106mm, Ø centring 82.50mm

- Shaft: Ø25.4mm, cylindrical

- Ports: G1/2 (inlet and outlet) G1/4 (drain)

- PNP speed of rotation sensor (35 impulsion per rev)

Technical data for BMR Hydraulic Orbital Motors

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1085	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1220	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	360	360	390	390	365
	int.	83	126	220	280	340	430	440	490	535	495
	peak	105	165	270	320	370	460	560	640	650	680
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	10	7	6	5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	9.5	9	8
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	16.5	13	11	9	7
	int.	16.5	17.5	20	20	20	20	17.5	15	13	10
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	20	17.5	15
Max. flow (L/min)	cont.	40	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	45	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

Specifications:

hydraulic orbit motor	BMP-50
hydraulic orbit motor	BMP-80
hydraulic orbit motor	BMP-100
hydraulic orbit motor	BMP-160
hydraulic orbit motor	BMP-200
hydraulic orbit motor	BMP-250
hydraulic orbit motor	BMP-315
hydraulic orbit motor	BMP-400
hydraulic orbit motor	BMR-50
hydraulic orbit motor	BMR-80
hydraulic orbit motor	BMR-100
hydraulic orbit motor	BMR-160
hydraulic orbit motor	BMR-200
hydraulic orbit motor	BMR-315
hydraulic orbit motor	BMR-375
hydraulic orbit motor	BMS-125
hydraulic orbit motor	BMS-200
hydraulic orbit motor	BMS-250
hydraulic orbit motor	BMS-375
