151B-3103 Hydraulic Drive Motor , Hydraulic Orbital Motors Shaft 50 Parallel Key

Brand Name : HANJIU

Model Number : BMV

Certification : CE

Place of Origin : CHINA

MOQ : 1 Sets

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000000 sets per year

Delivery Time : 10-15 work days

Packaging Details : 51x25x25cm/ pc/ carton.

Products Name : Hydraulic Orbital Motor

Shaft : 50mm

Oil Port : G1

Drain Port : G1/4"

Warranty : 12-18 months

Application : Heavy equipments, Construction machines, etc.

Replace : 151B-3103 ( OMV)

Contact Now

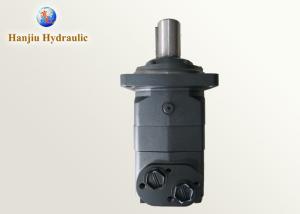

151B-3103 Hydraulic Motor , 4 bolt Square-flange 200, Shaft 50 parallel key

BMV-630-4AD is a replacement motor of 151B-3103

  1. BMV = OMV
  2. displacement = 630cc
  3. 4-Ø18 Square-flangeØ200
  4. 4-Ø18 Square-flangeØ200
  5. G1 Manifold 4×M12, G1/4

Introduction:

  1. hanjiu strong at replacement motor of many makes, , Eaton Char-lynn, Parker, M+S, White, Brevini, Rexroth

Specification:

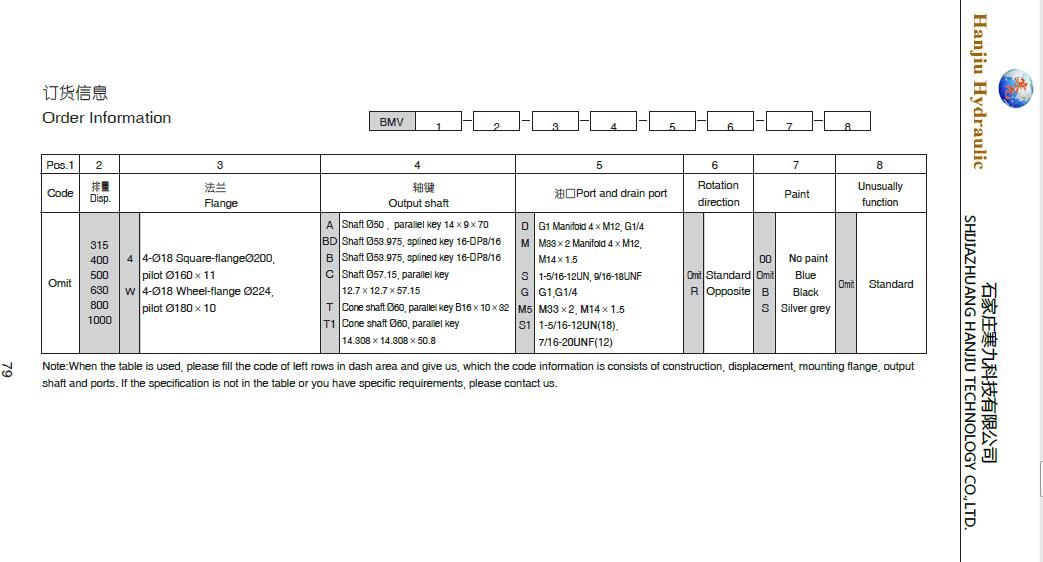

Note: When the table is used, please fill the code in the table and give us the complete order code you need. The code information consists of construction, displacement, mounting flange, output shaft and ports . For more details about Performance data, Dimensions & mounting data, Shaft extensions, etc., please download our catalogue at here.

Main Specifications:
Type BMV 315 BMV 400 BMV 500 BMV 630 BMV 800 BMV 1000
Geometric displacement (cm3 /rev.) 333 419 518 666 801 990
Max. speed (rpm) cont. 510 500 400 320 250 200
int. 630 600 480 380 300 240
Max. torque (N·m) cont. 920 1180 1460 1660 1880 2015
int. 1110 1410 1760 1940 2110 2280
peak 1290 1640 2050 2210 2470 2400
Max. output (kW) cont. 38 47 47 40 33 28.6
int. 46 56 56 56 44 40
Max. pressure drop (MPa) cont. 20 20 20 18 16 14
int. 24 24 24 21 18 16
peak 28 28 28 24 21 18
Max. flow (L/min) cont. 160 200 200 200 200 200
int. 200 240 240 240 240 240
Weight (kg) 31.8 32.6 33.5 34.9 36.5 38.6

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
